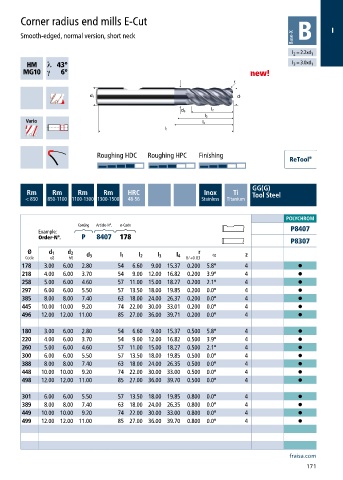

Corner radius end mills E-Cut
I
Smooth-edged, normal version, short neck

l = 2.2xd 1
2
h ƍ l = 3.0xd 1
3
a ƍ new!

Roughing HDC Roughing HPC Finishing

GG(G)
Rm Rm Rm Rm HRC Inox Ti Tool Steel
< 850 850-1100 1100-1300 1300-1500 48-56 Stainless Titanium

POLYCHROM
Coating Article-N°. ø-Code
Example: P8407
Order-N°. P 8407 178
P8307
Ø d 1 d 2 r
new d 3 l 1 l 2 l 3 l 4 α z
Code e8 h6 0/+0.03
new 178 3.00 6.00 2.80 54 6.60 9.00 15.37 0.200 5.8° 4 •
new 218 4.00 6.00 3.70 54 9.00 12.00 16.82 0.200 3.9° 4 •
new 258 5.00 6.00 4.60 57 11.00 15.00 18.27 0.200 2.1° 4 •
new 297 6.00 6.00 5.50 57 13.50 18.00 19.85 0.200 0.0° 4 •
new 385 8.00 8.00 7.40 63 18.00 24.00 26.37 0.200 0.0° 4 •
new 445 10.00 10.00 9.20 74 22.00 30.00 33.01 0.200 0.0° 4 •
new 496 12.00 12.00 11.00 85 27.00 36.00 39.71 0.200 0.0° 4 •

new 180 3.00 6.00 2.80 54 6.60 9.00 15.37 0.500 5.8° 4 •
new 220 4.00 6.00 3.70 54 9.00 12.00 16.82 0.500 3.9° 4 •
new 260 5.00 6.00 4.60 57 11.00 15.00 18.27 0.500 2.1° 4 •
new 300 6.00 6.00 5.50 57 13.50 18.00 19.85 0.500 0.0° 4 •
new 388 8.00 8.00 7.40 63 18.00 24.00 26.35 0.500 0.0° 4 •
new 448 10.00 10.00 9.20 74 22.00 30.00 33.00 0.500 0.0° 4 •
new 498 12.00 12.00 11.00 85 27.00 36.00 39.70 0.500 0.0° 4 •

new 301 6.00 6.00 5.50 57 13.50 18.00 19.85 0.800 0.0° 4 •
new 389 8.00 8.00 7.40 63 18.00 24.00 26.35 0.800 0.0° 4 •
new 449 10.00 10.00 9.20 74 22.00 30.00 33.00 0.800 0.0° 4 •
new 499 12.00 12.00 11.00 85 27.00 36.00 39.70 0.800 0.0° 4 •
