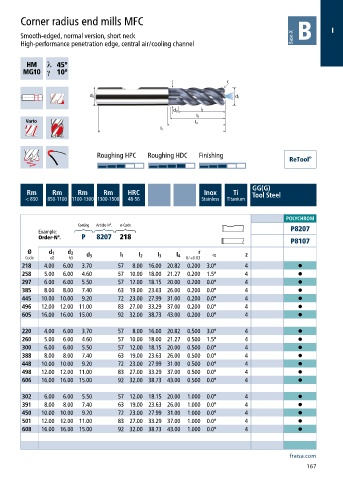

Corner radius end mills MFC
I
Smooth-edged, normal version, short neck
High-performance penetration edge, central air/cooling channel

h ƍ
a ƍ

Roughing HPC Roughing HDC Finishing

GG(G)
Rm Rm Rm Rm HRC Inox Ti Tool Steel
< 850 850-1100 1100-1300 1300-1500 48-56 Stainless Titanium

POLYCHROM
Coating Article-N°. ø-Code
Example: P8207
Order-N°. P 8207 218
P8107
Ø d 1 d 2 r α
Code e8 h5 d 3 l 1 l 2 l 3 l 4 0/+0.03 z
218 4.00 6.00 3.70 57 8.00 16.00 20.82 0.200 3.0° 4 •
258 5.00 6.00 4.60 57 10.00 18.00 21.27 0.200 1.5° 4 •
297 6.00 6.00 5.50 57 12.00 18.15 20.00 0.200 0.0° 4 •
385 8.00 8.00 7.40 63 19.00 23.63 26.00 0.200 0.0° 4 •
445 10.00 10.00 9.20 72 23.00 27.99 31.00 0.200 0.0° 4 •
496 12.00 12.00 11.00 83 27.00 33.29 37.00 0.200 0.0° 4 •
605 16.00 16.00 15.00 92 32.00 38.73 43.00 0.200 0.0° 4 •

220 4.00 6.00 3.70 57 8.00 16.00 20.82 0.500 3.0° 4 •
260 5.00 6.00 4.60 57 10.00 18.00 21.27 0.500 1.5° 4 •
300 6.00 6.00 5.50 57 12.00 18.15 20.00 0.500 0.0° 4 •
388 8.00 8.00 7.40 63 19.00 23.63 26.00 0.500 0.0° 4 •
448 10.00 10.00 9.20 72 23.00 27.99 31.00 0.500 0.0° 4 •
498 12.00 12.00 11.00 83 27.00 33.29 37.00 0.500 0.0° 4 •
606 16.00 16.00 15.00 92 32.00 38.73 43.00 0.500 0.0° 4 •

302 6.00 6.00 5.50 57 12.00 18.15 20.00 1.000 0.0° 4 •
391 8.00 8.00 7.40 63 19.00 23.63 26.00 1.000 0.0° 4 •
450 10.00 10.00 9.20 72 23.00 27.99 31.00 1.000 0.0° 4 •
501 12.00 12.00 11.00 83 27.00 33.29 37.00 1.000 0.0° 4 •
608 16.00 16.00 15.00 92 32.00 38.73 43.00 1.000 0.0° 4 •
