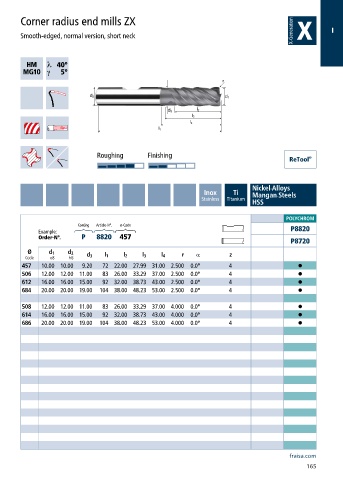

Page 167 - 21-036 APPLITEC catalogue.indb
P. 167
Corner radius end mills ZX
I
Smooth-edged, normal version, short neck
h ƍ
a ƍ
Roughing Finishing
Nickel-Alloys
Inox Ti Mangan-Steels
Stainless Titanium
HSS
POLYCHROM
Coating Article-N°. ø-Code
Example: P8820
Order-N°. P 8820 457
P8720
Ø d 1 d 2 α
Code e8 h6 d 3 l 1 l 2 l 3 l 4 r z
457 10.00 10.00 9.20 72 22.00 27.99 31.00 2.500 0.0° 4 •
506 12.00 12.00 11.00 83 26.00 33.29 37.00 2.500 0.0° 4 •
612 16.00 16.00 15.00 92 32.00 38.73 43.00 2.500 0.0° 4 •
684 20.00 20.00 19.00 104 38.00 48.23 53.00 2.500 0.0° 4 •
508 12.00 12.00 11.00 83 26.00 33.29 37.00 4.000 0.0° 4 •
614 16.00 16.00 15.00 92 32.00 38.73 43.00 4.000 0.0° 4 •
686 20.00 20.00 19.00 104 38.00 48.23 53.00 4.000 0.0° 4 •
fraisa.com
165
