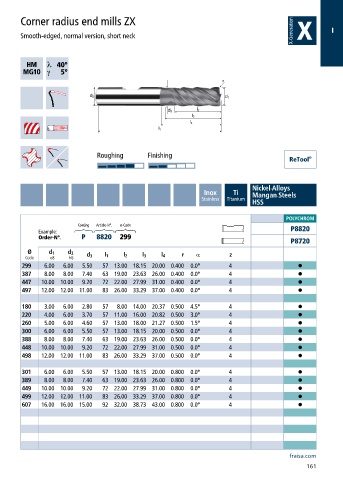

Corner radius end mills ZX
I
Smooth-edged, normal version, short neck

h ƍ
a ƍ

Roughing Finishing

Nickel-Alloys
Inox Ti Mangan-Steels
Stainless Titanium
HSS
POLYCHROM
Coating Article-N°. ø-Code
Example: P8820
Order-N°. P 8820 299
P8720
Ø d 1 d 2 α
Code e8 h6 d 3 l 1 l 2 l 3 l 4 r z
299 6.00 6.00 5.50 57 13.00 18.15 20.00 0.400 0.0° 4 •
387 8.00 8.00 7.40 63 19.00 23.63 26.00 0.400 0.0° 4 •
447 10.00 10.00 9.20 72 22.00 27.99 31.00 0.400 0.0° 4 •
497 12.00 12.00 11.00 83 26.00 33.29 37.00 0.400 0.0° 4 •

180 3.00 6.00 2.80 57 8.00 14.00 20.37 0.500 4.5° 4 •
220 4.00 6.00 3.70 57 11.00 16.00 20.82 0.500 3.0° 4 •
260 5.00 6.00 4.60 57 13.00 18.00 21.27 0.500 1.5° 4 •
300 6.00 6.00 5.50 57 13.00 18.15 20.00 0.500 0.0° 4 •
388 8.00 8.00 7.40 63 19.00 23.63 26.00 0.500 0.0° 4 •
448 10.00 10.00 9.20 72 22.00 27.99 31.00 0.500 0.0° 4 •
498 12.00 12.00 11.00 83 26.00 33.29 37.00 0.500 0.0° 4 •

301 6.00 6.00 5.50 57 13.00 18.15 20.00 0.800 0.0° 4 •
389 8.00 8.00 7.40 63 19.00 23.63 26.00 0.800 0.0° 4 •
449 10.00 10.00 9.20 72 22.00 27.99 31.00 0.800 0.0° 4 •
499 12.00 12.00 11.00 83 26.00 33.29 37.00 0.800 0.0° 4 •
607 16.00 16.00 15.00 92 32.00 38.73 43.00 0.800 0.0° 4 •
