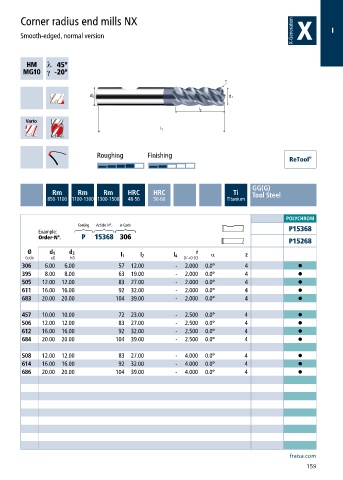

Corner radius end mills NX
I
Smooth-edged, normal version
h ƍ
a ƍ
Roughing Finishing
GG(G)
Rm Rm Rm HRC HRC Ti Tool Steel
850-1100 1100-1300 1300-1500 48-56 56-60 Titanium
POLYCHROM
Coating Article-N°. ø-Code
Example: P15368
Order-N°. P 15368 306
P15268
Ø d 1 d 2 r α
Code e8 h6 l 1 l 2 l 4 0/+0.03 z
306 6.00 6.00 57 12.00 - 2.000 0.0° 4 •
395 8.00 8.00 63 19.00 - 2.000 0.0° 4 •
505 12.00 12.00 83 27.00 - 2.000 0.0° 4 •
611 16.00 16.00 92 32.00 - 2.000 0.0° 4 •
683 20.00 20.00 104 39.00 - 2.000 0.0° 4 •
457 10.00 10.00 72 23.00 - 2.500 0.0° 4 •
506 12.00 12.00 83 27.00 - 2.500 0.0° 4 •
612 16.00 16.00 92 32.00 - 2.500 0.0° 4 •
684 20.00 20.00 104 39.00 - 2.500 0.0° 4 •
508 12.00 12.00 83 27.00 - 4.000 0.0° 4 •
614 16.00 16.00 92 32.00 - 4.000 0.0° 4 •
686 20.00 20.00 104 39.00 - 4.000 0.0° 4 •
