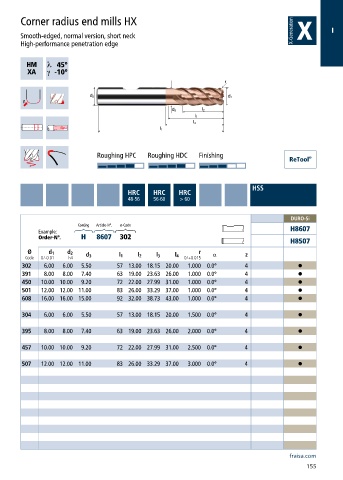

Corner radius end mills HX
I
Smooth-edged, normal version, short neck
High-performance penetration edge
h ƍ
a ƍ
Roughing HPC Roughing HDC Finishing
HSS
HRC HRC HRC
48-56 56-60 > 60
DURO-Si
Coating Article-N°. ø-Code
Example: H8607
Order-N°. H 8607 302
H8507
Ø d 1 d 2 r α
Code 0/-0.01 h4 d 3 l 1 l 2 l 3 l 4 0/+0.015 z
302 6.00 6.00 5.50 57 13.00 18.15 20.00 1.000 0.0° 4 •
391 8.00 8.00 7.40 63 19.00 23.63 26.00 1.000 0.0° 4 •
450 10.00 10.00 9.20 72 22.00 27.99 31.00 1.000 0.0° 4 •
501 12.00 12.00 11.00 83 26.00 33.29 37.00 1.000 0.0° 4 •
608 16.00 16.00 15.00 92 32.00 38.73 43.00 1.000 0.0° 4 •
304 6.00 6.00 5.50 57 13.00 18.15 20.00 1.500 0.0° 4 •
395 8.00 8.00 7.40 63 19.00 23.63 26.00 2.000 0.0° 4 •
457 10.00 10.00 9.20 72 22.00 27.99 31.00 2.500 0.0° 4 •
507 12.00 12.00 11.00 83 26.00 33.29 37.00 3.000 0.0° 4 •
