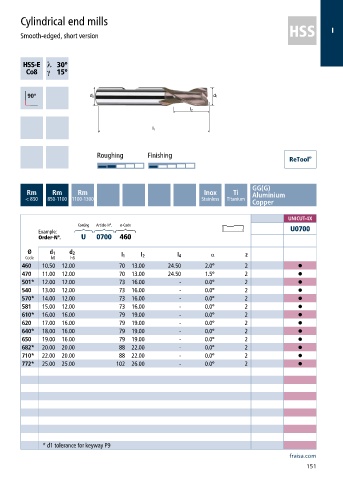

Cylindrical end mills
I
Smooth-edged, short version
h ƍ
a ƍ
Roughing Finishing
GG(G)
Rm Rm Rm Inox Ti Aluminium
< 850 850-1100 1100-1300 Stainless Titanium
Copper
UNICUT-4X
Coating Article-N°. ø-Code
Example: U0700
Order-N°. U 0700 460
Ø d 1 d 2 α
Code h8 h6 l 1 l 2 l 4 z
460 10.50 12.00 70 13.00 24.50 2.0° 2 •
470 11.00 12.00 70 13.00 24.50 1.5° 2 •
501* 12.00 12.00 73 16.00 - 0.0° 2 •
540 13.00 12.00 73 16.00 - 0.0° 2 •
570* 14.00 12.00 73 16.00 - 0.0° 2 •
581 15.00 12.00 73 16.00 - 0.0° 2 •
610* 16.00 16.00 79 19.00 - 0.0° 2 •
620 17.00 16.00 79 19.00 - 0.0° 2 •
640* 18.00 16.00 79 19.00 - 0.0° 2 •
650 19.00 16.00 79 19.00 - 0.0° 2 •
682* 20.00 20.00 88 22.00 - 0.0° 2 •
710* 22.00 20.00 88 22.00 - 0.0° 2 •
772* 25.00 25.00 102 26.00 - 0.0° 2 •
* d1 tolerance for keyway P9
