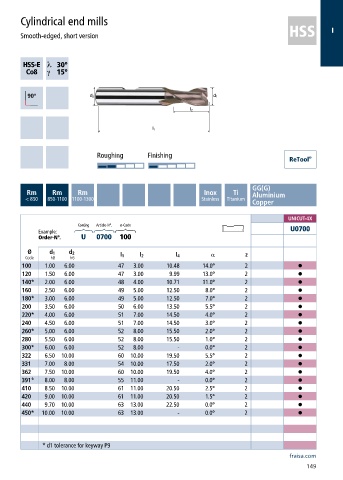

Cylindrical end mills
I
Smooth-edged, short version

h ƍ
a ƍ

Roughing Finishing

GG(G)
Rm Rm Rm Inox Ti Aluminium
< 850 850-1100 1100-1300 Stainless Titanium
Copper
UNICUT-4X
Coating Article-N°. ø-Code
Example: U0700
Order-N°. U 0700 100
Ø d 1 d 2 α
Code h8 h6 l 1 l 2 l 4 z
100 1.00 6.00 47 3.00 10.48 14.0° 2 •
120 1.50 6.00 47 3.00 9.99 13.0° 2 •
140* 2.00 6.00 48 4.00 10.71 11.0° 2 •
160 2.50 6.00 49 5.00 12.50 8.0° 2 •
180* 3.00 6.00 49 5.00 12.50 7.0° 2 •
200 3.50 6.00 50 6.00 13.50 5.5° 2 •
220* 4.00 6.00 51 7.00 14.50 4.0° 2 •
240 4.50 6.00 51 7.00 14.50 3.0° 2 •
260* 5.00 6.00 52 8.00 15.50 2.0° 2 •
280 5.50 6.00 52 8.00 15.50 1.0° 2 •
300* 6.00 6.00 52 8.00 - 0.0° 2 •
322 6.50 10.00 60 10.00 19.50 5.5° 2 •
331 7.00 8.00 54 10.00 17.50 2.0° 2 •
362 7.50 10.00 60 10.00 19.50 4.0° 2 •
391* 8.00 8.00 55 11.00 - 0.0° 2 •
410 8.50 10.00 61 11.00 20.50 2.5° 2 •
420 9.00 10.00 61 11.00 20.50 1.5° 2 •
440 9.70 10.00 63 13.00 22.50 0.0° 2 •
450* 10.00 10.00 63 13.00 - 0.0° 2 •

* d1 tolerance for keyway P9
