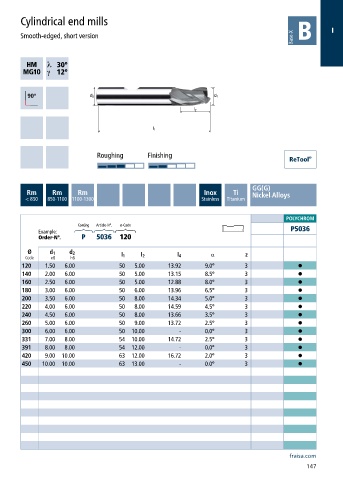

Cylindrical end mills
I
Smooth-edged, short version
h ƍ
a ƍ
Roughing Finishing
GG(G)
Rm Rm Rm Inox Ti Nickel-Alloys
< 850 850-1100 1100-1300 Stainless Titanium
POLYCHROM
Coating Article-N°. ø-Code
Example: P5036
Order-N°. P 5036 120
Ø d 1 d 2 α
Code e8 h6 l 1 l 2 l 4 z
120 1.50 6.00 50 5.00 13.92 9.0° 3 •
140 2.00 6.00 50 5.00 13.15 8.5° 3 •
160 2.50 6.00 50 5.00 12.88 8.0° 3 •
180 3.00 6.00 50 6.00 13.96 6.5° 3 •
200 3.50 6.00 50 8.00 14.34 5.0° 3 •
220 4.00 6.00 50 8.00 14.59 4.5° 3 •
240 4.50 6.00 50 8.00 13.66 3.5° 3 •
260 5.00 6.00 50 9.00 13.72 2.5° 3 •
300 6.00 6.00 50 10.00 - 0.0° 3 •
331 7.00 8.00 54 10.00 14.72 2.5° 3 •
391 8.00 8.00 54 12.00 - 0.0° 3 •
420 9.00 10.00 63 12.00 16.72 2.0° 3 •
450 10.00 10.00 63 13.00 - 0.0° 3 •
