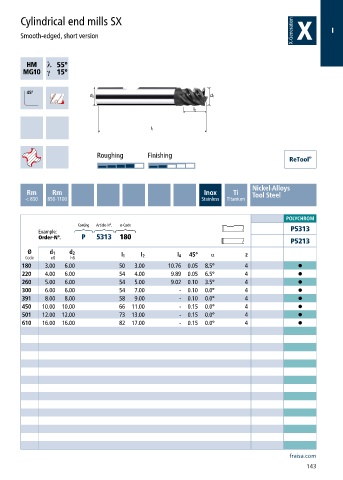

Cylindrical end mills SX
I
Smooth-edged, short version
h ƍ
a ƍ
Roughing Finishing
Nickel-Alloys
Rm Rm Inox Ti Tool Steel
< 850 850-1100 Stainless Titanium
POLYCHROM
Coating Article-N°. ø-Code
Example: P5313
Order-N°. P 5313 180
P5213
Ø d 1 d 2 α
Code e8 h6 l 1 l 2 l 4 45° z
180 3.00 6.00 50 3.00 10.76 0.05 8.5° 4 •
220 4.00 6.00 54 4.00 9.89 0.05 6.5° 4 •
260 5.00 6.00 54 5.00 9.02 0.10 3.5° 4 •
300 6.00 6.00 54 7.00 - 0.10 0.0° 4 •
391 8.00 8.00 58 9.00 - 0.10 0.0° 4 •
450 10.00 10.00 66 11.00 - 0.15 0.0° 4 •
501 12.00 12.00 73 13.00 - 0.15 0.0° 4 •
610 16.00 16.00 82 17.00 - 0.15 0.0° 4 •
