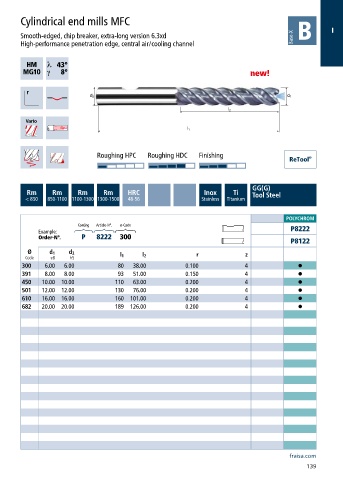

Page 141 - 21-036 APPLITEC catalogue.indb
P. 141
Cylindrical end mills MFC
I
Smooth-edged, chip breaker, extra-long version 6.3xd
High-performance penetration edge, central air/cooling channel
h ƍ
a ƍ new!
Roughing HPC Roughing HDC Finishing
GG(G)
Rm Rm Rm Rm HRC Inox Ti Tool Steel
< 850 850-1100 1100-1300 1300-1500 48-56 Stainless Titanium
POLYCHROM
Coating Article-N°. ø-Code
Example: P8222
Order-N°. P 8222 300
P8122
Ø d 1 d 2
new l 1 l 2 r z
Code e8 h5
new 300 6.00 6.00 80 38.00 0.100 4 •
new 391 8.00 8.00 93 51.00 0.150 4 •
new 450 10.00 10.00 110 63.00 0.200 4 •
new 501 12.00 12.00 130 76.00 0.200 4 •
new 610 16.00 16.00 160 101.00 0.200 4 •
new 682 20.00 20.00 189 126.00 0.200 4 •
fraisa.com
139
