P. 137

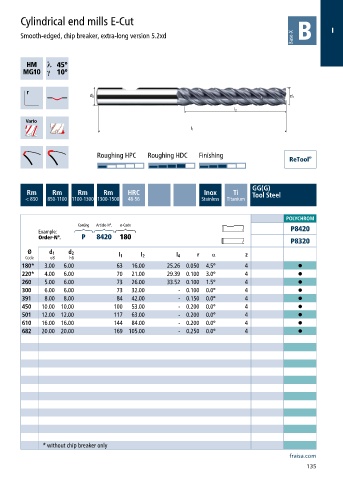

Cylindrical end mills E-Cut
I
Smooth-edged, chip breaker, extra-long version 5.2xd
h ƍ
a ƍ
Roughing HPC Roughing HDC Finishing
GG(G)
Rm Rm Rm Rm HRC Inox Ti Tool Steel
< 850 850-1100 1100-1300 1300-1500 48-56 Stainless Titanium
POLYCHROM
Coating Article-N°. ø-Code
Example: P8420
Order-N°. P 8420 180
P8320
Ø d 1 d 2 α
Code e8 h6 l 1 l 2 l 4 r z
180* 3.00 6.00 63 16.00 25.26 0.050 4.5° 4 •
220* 4.00 6.00 70 21.00 29.39 0.100 3.0° 4 •
260 5.00 6.00 73 26.00 33.52 0.100 1.5° 4 •
300 6.00 6.00 73 32.00 - 0.100 0.0° 4 •
391 8.00 8.00 84 42.00 - 0.150 0.0° 4 •
450 10.00 10.00 100 53.00 - 0.200 0.0° 4 •
501 12.00 12.00 117 63.00 - 0.200 0.0° 4 •
610 16.00 16.00 144 84.00 - 0.200 0.0° 4 •
682 20.00 20.00 169 105.00 - 0.250 0.0° 4 •
* without chip breaker only
fraisa.com
