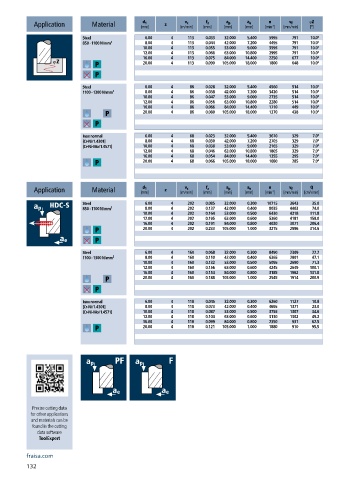

Page 134 - 21-036 APPLITEC catalogue.indb
P. 134
f z
a p
d 1
v c
v f
n
a e
Application Material [mm] z [m/min] [mm] [mm] [mm] [min ] -1 [mm/min] jZ
[°]
Steel 6.00 4 113 0.033 32.000 5.400 5995 791 10.0°
850 - 1100 N/mm² 8.00 4 113 0.044 42.000 7.200 4495 791 10.0°
10.00 4 113 0.055 53.000 9.000 3595 791 10.0°
12.00 4 113 0.066 63.000 10.800 2995 791 10.0°
16.00 4 113 0.075 84.000 14.400 2250 677 10.0°
20.00 4 113 0.090 105.000 18.000 1800 648 10.0°
Steel 6.00 4 86 0.028 32.000 5.400 4560 514 10.0°
1100 - 1300 N/mm² 8.00 4 86 0.038 42.000 7.200 3420 514 10.0°
10.00 4 86 0.047 53.000 9.000 2735 514 10.0°
12.00 4 86 0.056 63.000 10.800 2280 514 10.0°
16.00 4 86 0.066 84.000 14.400 1710 449 10.0°
20.00 4 86 0.080 105.000 18.000 1370 438 10.0°
Inox normal 6.00 4 68 0.023 32.000 5.400 3610 329 7.0°
[Cr-Ni/1.4301] 8.00 4 68 0.030 42.000 7.200 2705 329 7.0°
[Cr-Ni-Mo/1.4571] 10.00 4 68 0.038 53.000 9.000 2165 329 7.0°
12.00 4 68 0.046 63.000 10.800 1805 329 7.0°
16.00 4 68 0.054 84.000 14.400 1355 295 7.0°
20.00 4 68 0.066 105.000 18.000 1080 285 7.0°
v c
f z
a p
n
v f
Q
a e
d 1
Application Material [mm] z [m/min] [mm] [mm] [mm] [min ] -1 [mm/min] [cm /min]
3
Steel 6.00 4 202 0.085 32.000 0.300 10715 3643 35.0
850 - 1100 N/mm² 8.00 4 202 0.137 42.000 0.400 8035 4403 74.0
10.00 4 202 0.164 53.000 0.500 6430 4218 111.8
12.00 4 202 0.195 63.000 0.600 5360 4181 158.0
16.00 4 202 0.191 84.000 0.800 4020 3071 206.4
20.00 4 202 0.233 105.000 1.000 3215 2996 314.6
Steel 6.00 4 160 0.068 32.000 0.300 8490 2309 22.2
1100 - 1300 N/mm² 8.00 4 160 0.110 42.000 0.400 6365 2801 47.1
10.00 4 160 0.132 53.000 0.500 5095 2690 71.3
12.00 4 160 0.156 63.000 0.600 4245 2649 100.1
16.00 4 160 0.154 84.000 0.800 3185 1962 131.8
20.00 4 160 0.188 105.000 1.000 2545 1914 200.9
Inox normal 6.00 4 118 0.045 32.000 0.300 6260 1127 10.8
[Cr-Ni/1.4301] 8.00 4 118 0.073 42.000 0.400 4695 1371 23.0
[Cr-Ni-Mo/1.4571] 10.00 4 118 0.087 53.000 0.500 3755 1307 34.6
12.00 4 118 0.104 63.000 0.600 3130 1302 49.2
16.00 4 118 0.099 84.000 0.800 2350 931 62.5
20.00 4 118 0.121 105.000 1.000 1880 910 95.5
Precise cutting data
for other applications
and materials can be
found in the cutting
data software
ToolExpert
fraisa.com
132
