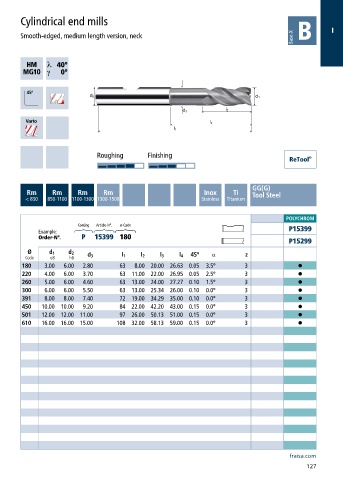

Cylindrical end mills
I
Smooth-edged, medium length version, neck

h ƍ
a ƍ

Roughing Finishing

GG(G)
Rm Rm Rm Rm Inox Ti Tool Steel
< 850 850-1100 1100-1300 1300-1500 Stainless Titanium

POLYCHROM
Coating Article-N°. ø-Code
Example: P15399
Order-N°. P 15399 180
P15299
Ø d 1 d 2 α
Code e8 h6 d 3 l 1 l 2 l 3 l 4 45° z
180 3.00 6.00 2.80 63 8.00 20.00 26.63 0.05 3.5° 3 •
220 4.00 6.00 3.70 63 11.00 22.00 26.95 0.05 2.5° 3 •
260 5.00 6.00 4.60 63 13.00 24.00 27.27 0.10 1.5° 3 •
300 6.00 6.00 5.50 63 13.00 25.34 26.00 0.10 0.0° 3 •
391 8.00 8.00 7.40 72 19.00 34.29 35.00 0.10 0.0° 3 •
450 10.00 10.00 9.20 84 22.00 42.20 43.00 0.15 0.0° 3 •
501 12.00 12.00 11.00 97 26.00 50.13 51.00 0.15 0.0° 3 •
610 16.00 16.00 15.00 108 32.00 58.13 59.00 0.15 0.0° 3 •
