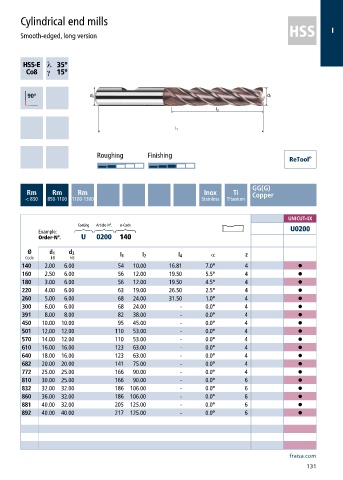

Cylindrical end mills
I
Smooth-edged, long version

h ƍ
a ƍ

Roughing Finishing

GG(G)
Rm Rm Rm Inox Ti Copper
< 850 850-1100 1100-1300 Stainless Titanium

UNICUT-4X
Coating Article-N°. ø-Code
Example: U0200
Order-N°. U 0200 140
Ø d 1 d 2 α
Code k8 h6 l 1 l 2 l 4 z
140 2.00 6.00 54 10.00 16.81 7.0° 4 •
160 2.50 6.00 56 12.00 19.50 5.5° 4 •
180 3.00 6.00 56 12.00 19.50 4.5° 4 •
220 4.00 6.00 63 19.00 26.50 2.5° 4 •
260 5.00 6.00 68 24.00 31.50 1.0° 4 •
300 6.00 6.00 68 24.00 - 0.0° 4 •
391 8.00 8.00 82 38.00 - 0.0° 4 •
450 10.00 10.00 95 45.00 - 0.0° 4 •
501 12.00 12.00 110 53.00 - 0.0° 4 •
570 14.00 12.00 110 53.00 - 0.0° 4 •
610 16.00 16.00 123 63.00 - 0.0° 4 •
640 18.00 16.00 123 63.00 - 0.0° 4 •
682 20.00 20.00 141 75.00 - 0.0° 4 •
772 25.00 25.00 166 90.00 - 0.0° 4 •
810 30.00 25.00 166 90.00 - 0.0° 6 •
832 32.00 32.00 186 106.00 - 0.0° 6 •
860 36.00 32.00 186 106.00 - 0.0° 6 •
881 40.00 32.00 205 125.00 - 0.0° 6 •
892 40.00 40.00 217 125.00 - 0.0° 6 •

fraisa.com
131
