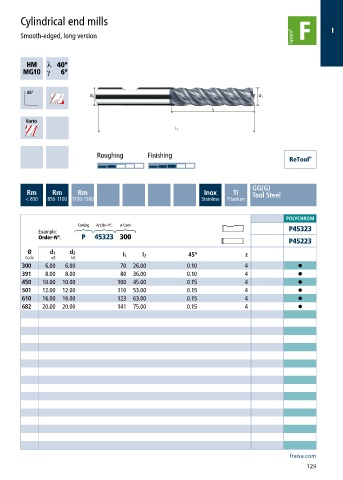

P. 131
Cylindrical end mills
I
Smooth-edged, long version
h ƍ
a ƍ
Roughing Finishing
GG(G)
Rm Rm Rm Inox Ti Tool Steel
< 850 850-1100 1100-1300 Stainless Titanium
POLYCHROM
Coating Article-N°. ø-Code
Example: P45323
Order-N°. P 45323 300
P45223
Ø d 1 d 2
Code e8 h6 l 1 l 2 45° z
300 6.00 6.00 70 26.00 0.10 4 •
391 8.00 8.00 80 36.00 0.10 4 •
450 10.00 10.00 100 45.00 0.15 4 •
501 12.00 12.00 110 53.00 0.15 4 •
610 16.00 16.00 123 63.00 0.15 4 •
682 20.00 20.00 141 75.00 0.15 4 •
