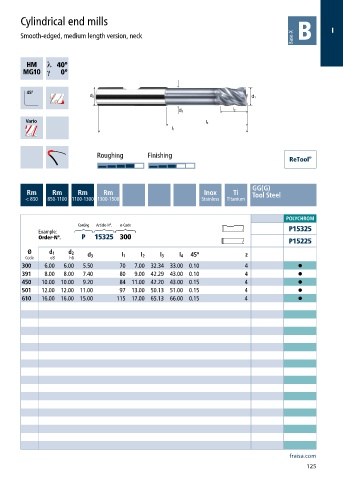

Cylindrical end mills
I
Smooth-edged, medium length version, neck
h ƍ
a ƍ
Roughing Finishing
GG(G)
Rm Rm Rm Rm Inox Ti Tool Steel
< 850 850-1100 1100-1300 1300-1500 Stainless Titanium
POLYCHROM
Coating Article-N°. ø-Code
Example: P15325
Order-N°. P 15325 300
P15225
Ø d 1 d 2
Code e8 h6 d 3 l 1 l 2 l 3 l 4 45° z
300 6.00 6.00 5.50 70 7.00 32.34 33.00 0.10 4 •
391 8.00 8.00 7.40 80 9.00 42.29 43.00 0.10 4 •
450 10.00 10.00 9.20 84 11.00 42.20 43.00 0.15 4 •
501 12.00 12.00 11.00 97 13.00 50.13 51.00 0.15 4 •
610 16.00 16.00 15.00 115 17.00 65.13 66.00 0.15 4 •
