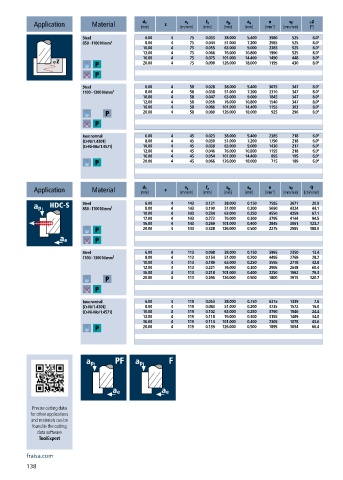

Page 140 - 21-036 APPLITEC catalogue.indb
P. 140
f z
a p
d 1
v c
v f
n
a e
Application Material [mm] z [m/min] [mm] [mm] [mm] [min ] -1 [mm/min] jZ
[°]
Steel 6.00 4 75 0.033 38.000 5.400 3980 525 8.0°
850 - 1100 N/mm² 8.00 4 75 0.044 51.000 7.200 2985 525 8.0°
10.00 4 75 0.055 63.000 9.000 2385 525 8.0°
12.00 4 75 0.066 76.000 10.800 1990 525 8.0°
16.00 4 75 0.075 101.000 14.400 1490 448 8.0°
20.00 4 75 0.090 126.000 18.000 1195 430 8.0°
Steel 6.00 4 58 0.028 38.000 5.400 3075 347 8.0°
1100 - 1300 N/mm² 8.00 4 58 0.038 51.000 7.200 2310 347 8.0°
10.00 4 58 0.047 63.000 9.000 1845 347 8.0°
12.00 4 58 0.056 76.000 10.800 1540 347 8.0°
16.00 4 58 0.066 101.000 14.400 1155 303 8.0°
20.00 4 58 0.080 126.000 18.000 925 296 8.0°
Inox normal 6.00 4 45 0.023 38.000 5.400 2385 218 6.0°
[Cr-Ni/1.4301] 8.00 4 45 0.030 51.000 7.200 1790 218 6.0°
[Cr-Ni-Mo/1.4571] 10.00 4 45 0.038 63.000 9.000 1430 217 6.0°
12.00 4 45 0.046 76.000 10.800 1195 218 6.0°
16.00 4 45 0.054 101.000 14.400 895 195 6.0°
20.00 4 45 0.066 126.000 18.000 715 189 6.0°
a p
a e
v c
f z
n
Q
d 1
v f
Application Material [mm] z [m/min] [mm] [mm] [mm] [min ] -1 [mm/min] [cm /min]
3
Steel 6.00 4 143 0.121 38.000 0.150 7585 3671 20.9
850 - 1100 N/mm² 8.00 4 143 0.190 51.000 0.200 5690 4324 44.1
10.00 4 143 0.234 63.000 0.250 4550 4259 67.1
12.00 4 143 0.273 76.000 0.300 3795 4144 94.5
16.00 4 143 0.269 101.000 0.400 2845 3061 123.7
20.00 4 143 0.328 126.000 0.500 2275 2985 188.0
Steel 6.00 4 113 0.098 38.000 0.150 5995 2350 13.4
1100 - 1300 N/mm² 8.00 4 113 0.154 51.000 0.200 4495 2769 28.2
10.00 4 113 0.189 63.000 0.250 3595 2718 42.8
12.00 4 113 0.221 76.000 0.300 2995 2648 60.4
16.00 4 113 0.218 101.000 0.400 2250 1962 79.3
20.00 4 113 0.266 126.000 0.500 1800 1915 120.7
Inox normal 6.00 4 119 0.053 38.000 0.150 6315 1339 7.6
[Cr-Ni/1.4301] 8.00 4 119 0.083 51.000 0.200 4735 1572 16.0
[Cr-Ni-Mo/1.4571] 10.00 4 119 0.102 63.000 0.250 3790 1546 24.4
12.00 4 119 0.118 76.000 0.300 3155 1489 34.0
16.00 4 119 0.114 101.000 0.400 2365 1078 43.6
20.00 4 119 0.139 126.000 0.500 1895 1054 66.4
Precise cutting data
for other applications
and materials can be
found in the cutting
data software
ToolExpert
fraisa.com
