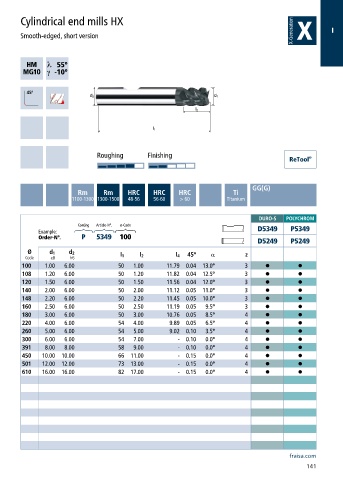

Cylindrical end mills HX
I
Smooth-edged, short version
h ƍ
a ƍ
Roughing Finishing
GG(G)
Rm Rm HRC HRC HRC Ti
1100-1300 1300-1500 48-56 56-60 > 60 Titanium
DURO-S POLYCHROM
Coating Article-N°. ø-Code
Example: D5349 P5349
Order-N°. P 5349 100
D5249 P5249
Ø d 1 d 2 α
Code e8 h6 l 1 l 2 l 4 45° z
100 1.00 6.00 50 1.00 11.79 0.04 13.0° 3 • •
108 1.20 6.00 50 1.20 11.82 0.04 12.5° 3 • •
120 1.50 6.00 50 1.50 11.56 0.04 12.0° 3 • •
140 2.00 6.00 50 2.00 11.12 0.05 11.0° 3 • •
148 2.20 6.00 50 2.20 11.45 0.05 10.0° 3 • •
160 2.50 6.00 50 2.50 11.19 0.05 9.5° 3 • •
180 3.00 6.00 50 3.00 10.76 0.05 8.5° 4 • •
220 4.00 6.00 54 4.00 9.89 0.05 6.5° 4 • •
260 5.00 6.00 54 5.00 9.02 0.10 3.5° 4 • •
300 6.00 6.00 54 7.00 - 0.10 0.0° 4 • •
391 8.00 8.00 58 9.00 - 0.10 0.0° 4 • •
450 10.00 10.00 66 11.00 - 0.15 0.0° 4 • •
501 12.00 12.00 73 13.00 - 0.15 0.0° 4 • •
610 16.00 16.00 82 17.00 - 0.15 0.0° 4 • •
