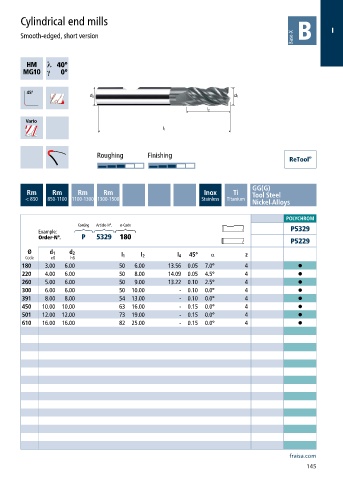

Cylindrical end mills
I
Smooth-edged, short version
h ƍ
a ƍ
Roughing Finishing
GG(G)
Rm Rm Rm Rm Inox Ti Tool Steel
< 850 850-1100 1100-1300 1300-1500 Stainless Titanium
Nickel-Alloys
POLYCHROM
Coating Article-N°. ø-Code
Example: P5329
Order-N°. P 5329 180
P5229
Ø d 1 d 2 α
Code e8 h6 l 1 l 2 l 4 45° z
180 3.00 6.00 50 6.00 13.56 0.05 7.0° 4 •
220 4.00 6.00 50 8.00 14.09 0.05 4.5° 4 •
260 5.00 6.00 50 9.00 13.22 0.10 2.5° 4 •
300 6.00 6.00 50 10.00 - 0.10 0.0° 4 •
391 8.00 8.00 54 13.00 - 0.10 0.0° 4 •
450 10.00 10.00 63 16.00 - 0.15 0.0° 4 •
501 12.00 12.00 73 19.00 - 0.15 0.0° 4 •
610 16.00 16.00 82 25.00 - 0.15 0.0° 4 •
