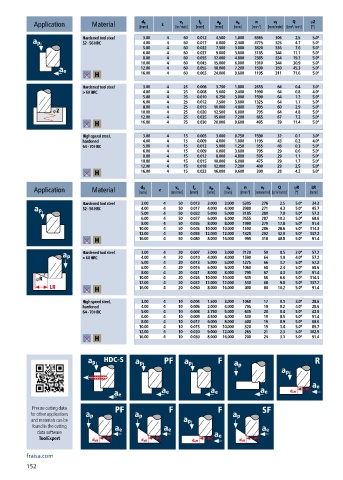

Page 154 - 21-036 APPLITEC catalogue.indb

a p
a e
f z
d 1
v c
v f
Q
n
Application Material [mm] z [m/min] [mm] [mm] [mm] [min ] -1 [mm/min] [cm /min] jZ
3
[°]
Hardened tool steel 3.00 4 60 0.012 4.500 1.800 6365 306 2.5 5.0°
52 - 56 HRC 4.00 4 60 0.017 6.000 2.400 4775 325 4.7 5.0°
5.00 4 60 0.022 7.500 3.000 3820 336 7.6 5.0°
6.00 4 60 0.027 9.000 3.600 3185 344 11.1 5.0°
8.00 4 60 0.035 12.000 4.800 2385 334 19.2 5.0°
10.00 4 60 0.045 15.000 6.000 1910 344 30.9 5.0°
12.00 4 60 0.055 18.000 7.200 1590 350 45.3 5.0°
16.00 4 60 0.065 24.000 9.600 1195 311 71.6 5.0°
Hardened tool steel 3.00 4 25 0.006 3.750 1.800 2655 64 0.4 3.0°
> 60 HRC 4.00 4 25 0.008 5.000 2.400 1990 64 0.8 4.0°
5.00 4 25 0.010 6.250 3.000 1590 64 1.2 5.0°
6.00 4 25 0.012 7.500 3.600 1325 64 1.7 5.0°
8.00 4 25 0.015 10.000 4.800 995 60 2.9 5.0°
10.00 4 25 0.020 12.500 6.000 795 64 4.8 5.0°
12.00 4 25 0.025 15.000 7.200 665 67 7.2 5.0°
16.00 4 25 0.030 20.000 9.600 495 59 11.4 5.0°
High speed steel, 3.00 4 15 0.005 3.000 0.750 1590 32 0.1 3.0°
hardened 4.00 4 15 0.009 4.000 1.000 1195 43 0.2 4.0°
64 - 70 HRC 5.00 4 15 0.012 5.000 1.250 955 46 0.3 5.0°
6.00 4 15 0.009 6.000 3.600 795 29 0.6 5.0°
8.00 4 15 0.012 8.000 4.800 595 29 1.1 5.0°
10.00 4 15 0.015 10.000 6.000 475 29 1.7 5.0°
12.00 4 15 0.018 12.000 7.200 400 29 2.5 5.0°
16.00 4 15 0.023 16.000 9.600 300 28 4.2 5.0°
f z
v c
a p
v f
Q
LR
d 1
a e
n
Application Material [mm] z [m/min] [mm] [mm] [mm] [min ] [mm/min] [cm /min] jR [mm]
[°]
3
-1
Hardened tool steel 3.00 4 50 0.013 3.000 3.000 5305 276 2.5 5.0° 34.3
52 - 56 HRC 4.00 4 50 0.017 4.000 4.000 3980 271 4.3 5.0° 45.7
5.00 4 50 0.022 5.000 5.000 3185 280 7.0 5.0° 57.2
6.00 4 50 0.027 6.000 6.000 2655 287 10.3 5.0° 68.6
8.00 4 50 0.035 8.000 8.000 1990 279 17.8 5.0° 91.4
10.00 4 50 0.045 10.000 10.000 1590 286 28.6 5.0° 114.3
12.00 4 50 0.055 12.000 12.000 1325 292 42.0 5.0° 137.2
16.00 4 50 0.080 8.000 16.000 995 318 40.8 5.0° 91.4
Hardened tool steel 3.00 4 20 0.007 3.000 3.000 2120 59 0.5 3.0° 57.2
> 60 HRC 4.00 4 20 0.010 4.000 4.000 1590 64 1.0 4.0° 57.2
5.00 4 20 0.013 5.000 5.000 1275 66 1.7 5.0° 57.2
6.00 4 20 0.016 6.000 6.000 1060 68 2.4 5.0° 68.6
8.00 4 20 0.021 8.000 8.000 795 67 4.3 5.0° 91.4
10.00 4 20 0.026 10.000 10.000 635 66 6.6 5.0° 114.3
12.00 4 20 0.032 12.000 12.000 530 68 9.8 5.0° 137.2
16.00 4 20 0.050 8.000 16.000 400 80 10.2 5.0° 91.4
High speed steel, 3.00 4 10 0.004 1.500 3.000 1060 17 0.1 3.0° 28.6
hardened 4.00 4 10 0.006 2.000 4.000 795 19 0.2 4.0° 28.6
64 - 70 HRC 5.00 4 10 0.008 3.750 5.000 635 20 0.4 5.0° 42.9
6.00 4 10 0.009 4.500 6.000 530 19 0.5 5.0° 51.4
8.00 4 10 0.012 6.000 8.000 400 19 0.9 5.0° 68.6
10.00 4 10 0.015 7.500 10.000 320 19 1.4 5.0° 85.7
12.00 4 10 0.020 9.000 12.000 265 21 2.3 5.0° 102.9
16.00 4 10 0.030 8.000 16.000 200 24 3.1 5.0° 91.4
Precise cutting data
for other applications
and materials can be
found in the cutting
data software
ToolExpert
fraisa.com
152
