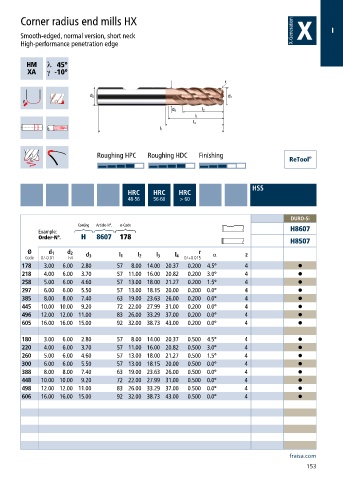

Corner radius end mills HX
I
Smooth-edged, normal version, short neck
High-performance penetration edge

h ƍ
a ƍ

Roughing HPC Roughing HDC Finishing

HSS
HRC HRC HRC
48-56 56-60 > 60

DURO-Si
Coating Article-N°. ø-Code
Example: H8607
Order-N°. H 8607 178
H8507
Ø d 1 d 2 r α
Code 0/-0.01 h4 d 3 l 1 l 2 l 3 l 4 0/+0.015 z
178 3.00 6.00 2.80 57 8.00 14.00 20.37 0.200 4.5° 4 •
218 4.00 6.00 3.70 57 11.00 16.00 20.82 0.200 3.0° 4 •
258 5.00 6.00 4.60 57 13.00 18.00 21.27 0.200 1.5° 4 •
297 6.00 6.00 5.50 57 13.00 18.15 20.00 0.200 0.0° 4 •
385 8.00 8.00 7.40 63 19.00 23.63 26.00 0.200 0.0° 4 •
445 10.00 10.00 9.20 72 22.00 27.99 31.00 0.200 0.0° 4 •
496 12.00 12.00 11.00 83 26.00 33.29 37.00 0.200 0.0° 4 •
605 16.00 16.00 15.00 92 32.00 38.73 43.00 0.200 0.0° 4 •
180 3.00 6.00 2.80 57 8.00 14.00 20.37 0.500 4.5° 4 •
220 4.00 6.00 3.70 57 11.00 16.00 20.82 0.500 3.0° 4 •
260 5.00 6.00 4.60 57 13.00 18.00 21.27 0.500 1.5° 4 •
300 6.00 6.00 5.50 57 13.00 18.15 20.00 0.500 0.0° 4 •
388 8.00 8.00 7.40 63 19.00 23.63 26.00 0.500 0.0° 4 •
448 10.00 10.00 9.20 72 22.00 27.99 31.00 0.500 0.0° 4 •
498 12.00 12.00 11.00 83 26.00 33.29 37.00 0.500 0.0° 4 •
606 16.00 16.00 15.00 92 32.00 38.73 43.00 0.500 0.0° 4 •
