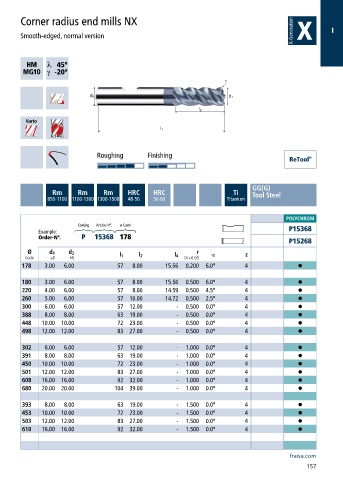

Corner radius end mills NX
I
Smooth-edged, normal version
h ƍ
a ƍ
Roughing Finishing
GG(G)
Rm Rm Rm HRC HRC Ti Tool Steel
850-1100 1100-1300 1300-1500 48-56 56-60 Titanium
POLYCHROM
Coating Article-N°. ø-Code
Example: P15368
Order-N°. P 15368 178
P15268
Ø d 1 d 2 r α
Code e8 h6 l 1 l 2 l 4 0/+0.03 z
178 3.00 6.00 57 8.00 15.56 0.200 6.0° 4 •
180 3.00 6.00 57 8.00 15.56 0.500 6.0° 4 •
220 4.00 6.00 57 8.00 14.59 0.500 4.5° 4 •
260 5.00 6.00 57 10.00 14.72 0.500 2.5° 4 •
300 6.00 6.00 57 12.00 - 0.500 0.0° 4 •
388 8.00 8.00 63 19.00 - 0.500 0.0° 4 •
448 10.00 10.00 72 23.00 - 0.500 0.0° 4 •
498 12.00 12.00 83 27.00 - 0.500 0.0° 4 •
302 6.00 6.00 57 12.00 - 1.000 0.0° 4 •
391 8.00 8.00 63 19.00 - 1.000 0.0° 4 •
450 10.00 10.00 72 23.00 - 1.000 0.0° 4 •
501 12.00 12.00 83 27.00 - 1.000 0.0° 4 •
608 16.00 16.00 92 32.00 - 1.000 0.0° 4 •
680 20.00 20.00 104 39.00 - 1.000 0.0° 4 •
393 8.00 8.00 63 19.00 - 1.500 0.0° 4 •
453 10.00 10.00 72 23.00 - 1.500 0.0° 4 •
503 12.00 12.00 83 27.00 - 1.500 0.0° 4 •
610 16.00 16.00 92 32.00 - 1.500 0.0° 4 •
