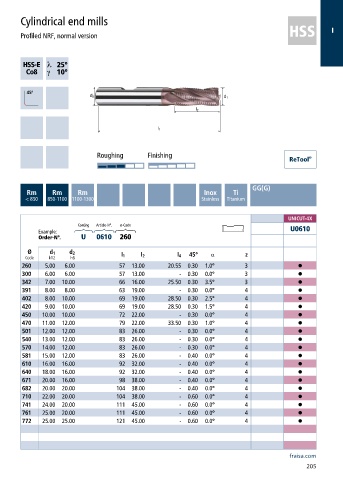

Page 207 - 21-036 APPLITEC catalogue.indb

Cylindrical end mills
I
Profiled NRF, normal version

h ƍ
a ƍ

Roughing Finishing

GG(G)
Rm Rm Rm Inox Ti
< 850 850-1100 1100-1300 Stainless Titanium

UNICUT-4X
Coating Article-N°. ø-Code
Example: U0610
Order-N°. U 0610 260
Ø d 1 d 2 α
Code k12 h6 l 1 l 2 l 4 45° z
260 5.00 6.00 57 13.00 20.55 0.30 1.0° 3 •
300 6.00 6.00 57 13.00 - 0.30 0.0° 3 •
342 7.00 10.00 66 16.00 25.50 0.30 3.5° 3 •
391 8.00 8.00 63 19.00 - 0.30 0.0° 4 •
402 8.00 10.00 69 19.00 28.50 0.30 2.5° 4 •
420 9.00 10.00 69 19.00 28.50 0.30 1.5° 4 •
450 10.00 10.00 72 22.00 - 0.30 0.0° 4 •
470 11.00 12.00 79 22.00 33.50 0.30 1.0° 4 •
501 12.00 12.00 83 26.00 - 0.30 0.0° 4 •
540 13.00 12.00 83 26.00 - 0.30 0.0° 4 •
570 14.00 12.00 83 26.00 - 0.30 0.0° 4 •
581 15.00 12.00 83 26.00 - 0.40 0.0° 4 •
610 16.00 16.00 92 32.00 - 0.40 0.0° 4 •
640 18.00 16.00 92 32.00 - 0.40 0.0° 4 •
671 20.00 16.00 98 38.00 - 0.40 0.0° 4 •
682 20.00 20.00 104 38.00 - 0.40 0.0° 4 •
710 22.00 20.00 104 38.00 - 0.60 0.0° 4 •
741 24.00 20.00 111 45.00 - 0.60 0.0° 4 •
761 25.00 20.00 111 45.00 - 0.60 0.0° 4 •
772 25.00 25.00 121 45.00 - 0.60 0.0° 4 •

fraisa.com
205
