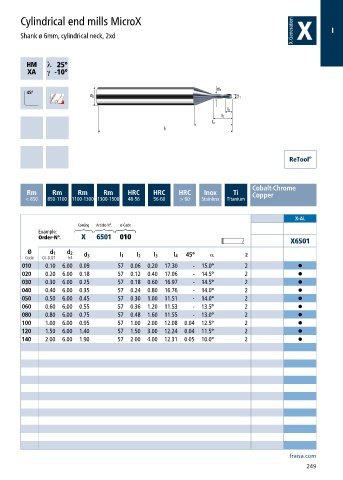

Cylindrical end mills MicroX
I
Shank ø 6mm, cylindrical neck, 2xd

h ƍ
a ƍ

Cobalt-Chrome
Rm Rm Rm Rm HRC HRC HRC Inox Ti Copper
< 850 850-1100 1100-1300 1300-1500 48-56 56-60 > 60 Stainless Titanium

X-AL
Coating Article-N°. ø-Code
Example:
Order-N°. X 6501 010
X6501
Ø d 1 d 2 α
Code 0/-0.01 h4 d 3 l 1 l 2 l 3 l 4 45° z
010 0.10 6.00 0.09 57 0.06 0.20 17.30 - 15.0° 2 •
020 0.20 6.00 0.18 57 0.12 0.40 17.06 - 14.5° 2 •
030 0.30 6.00 0.25 57 0.18 0.60 16.97 - 14.5° 2 •
040 0.40 6.00 0.35 57 0.24 0.80 16.76 - 14.0° 2 •
050 0.50 6.00 0.45 57 0.30 1.00 11.51 - 14.0° 2 •
060 0.60 6.00 0.55 57 0.36 1.20 11.53 - 13.5° 2 •
080 0.80 6.00 0.75 57 0.48 1.60 11.55 - 13.0° 2 •
100 1.00 6.00 0.95 57 1.00 2.00 12.08 0.04 12.5° 2 •
120 1.50 6.00 1.40 57 1.50 3.00 12.24 0.04 11.5° 2 •
140 2.00 6.00 1.90 57 2.00 4.00 12.31 0.05 10.0° 2 •
