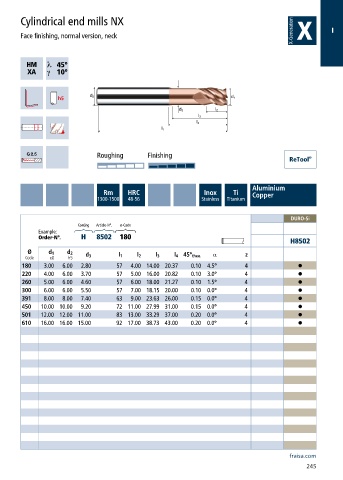

P. 247
Cylindrical end mills NX
I
Face finishing, normal version, neck
h ƍ
a ƍ
Roughing Finishing
Aluminium
Rm HRC Inox Ti Copper
1300-1500 48-56 Stainless Titanium
DURO-Si
Coating Article-N°. ø-Code
Example:
Order-N°. H 8502 180
H8502
Ø d 1 d 2 α
Code e8 h5 d 3 l 1 l 2 l 3 l 4 45° theo. z
180 3.00 6.00 2.80 57 4.00 14.00 20.37 0.10 4.5° 4 •
220 4.00 6.00 3.70 57 5.00 16.00 20.82 0.10 3.0° 4 •
260 5.00 6.00 4.60 57 6.00 18.00 21.27 0.10 1.5° 4 •
300 6.00 6.00 5.50 57 7.00 18.15 20.00 0.10 0.0° 4 •
391 8.00 8.00 7.40 63 9.00 23.63 26.00 0.15 0.0° 4 •
450 10.00 10.00 9.20 72 11.00 27.99 31.00 0.15 0.0° 4 •
501 12.00 12.00 11.00 83 13.00 33.29 37.00 0.20 0.0° 4 •
610 16.00 16.00 15.00 92 17.00 38.73 43.00 0.20 0.0° 4 •
fraisa.com
245
