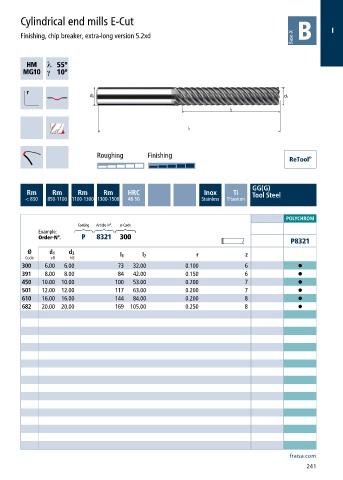

Cylindrical end mills E-Cut
I
Finishing, chip breaker, extra-long version 5.2xd
h ƍ
a ƍ
Roughing Finishing
GG(G)
Rm Rm Rm Rm HRC Inox Ti Tool Steel
< 850 850-1100 1100-1300 1300-1500 48-56 Stainless Titanium
POLYCHROM
Coating Article-N°. ø-Code
Example:
Order-N°. P 8321 300
P8321
Ø d 1 d 2
Code e8 h6 l 1 l 2 r z
300 6.00 6.00 73 32.00 0.100 6 •
391 8.00 8.00 84 42.00 0.150 6 •
450 10.00 10.00 100 53.00 0.200 7 •
501 12.00 12.00 117 63.00 0.200 7 •
610 16.00 16.00 144 84.00 0.200 8 •
682 20.00 20.00 169 105.00 0.250 8 •
