P. 239

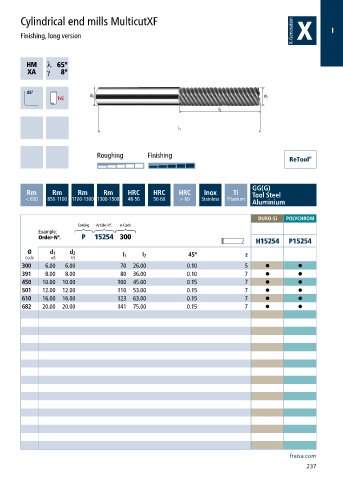

Cylindrical end mills MulticutXF
I
Finishing, long version
h ƍ
a ƍ
Roughing Finishing
GG(G)
Rm Rm Rm Rm HRC HRC HRC Inox Ti Tool Steel
< 850 850-1100 1100-1300 1300-1500 48-56 56-60 > 60 Stainless Titanium
Aluminium
DURO-Si POLYCHROM
Coating Article-N°. ø-Code
Example:
Order-N°. P 15254 300
H15254 P15254
Ø d 1 d 2
Code e8 h5 l 1 l 2 45° z
300 6.00 6.00 70 26.00 0.10 5 • •
391 8.00 8.00 80 36.00 0.10 7 • •
450 10.00 10.00 100 45.00 0.15 7 • •
501 12.00 12.00 110 53.00 0.15 7 • •
610 16.00 16.00 123 63.00 0.15 7 • •
682 20.00 20.00 141 75.00 0.15 7 • •
fraisa.com
237
