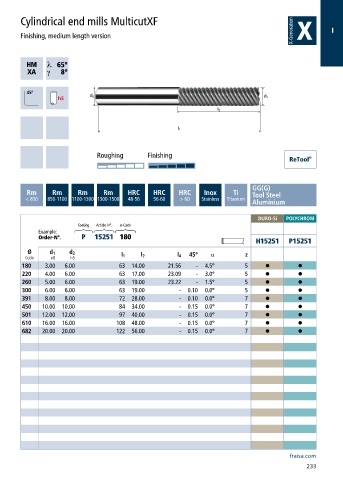

Cylindrical end mills MulticutXF
I
Finishing, medium length version
h ƍ
a ƍ
Roughing Finishing
GG(G)
Rm Rm Rm Rm HRC HRC HRC Inox Ti Tool Steel
< 850 850-1100 1100-1300 1300-1500 48-56 56-60 > 60 Stainless Titanium
Aluminium
DURO-Si POLYCHROM
Coating Article-N°. ø-Code
Example:
Order-N°. P 15251 180
H15251 P15251
Ø d 1 d 2 α
Code e8 h5 l 1 l 2 l 4 45° z
180 3.00 6.00 63 14.00 21.56 - 4.5° 5 • •
220 4.00 6.00 63 17.00 23.09 - 3.0° 5 • •
260 5.00 6.00 63 19.00 23.22 - 1.5° 5 • •
300 6.00 6.00 63 19.00 - 0.10 0.0° 5 • •
391 8.00 8.00 72 28.00 - 0.10 0.0° 7 • •
450 10.00 10.00 84 34.00 - 0.15 0.0° 7 • •
501 12.00 12.00 97 40.00 - 0.15 0.0° 7 • •
610 16.00 16.00 108 48.00 - 0.15 0.0° 7 • •
682 20.00 20.00 122 56.00 - 0.15 0.0° 7 • •
