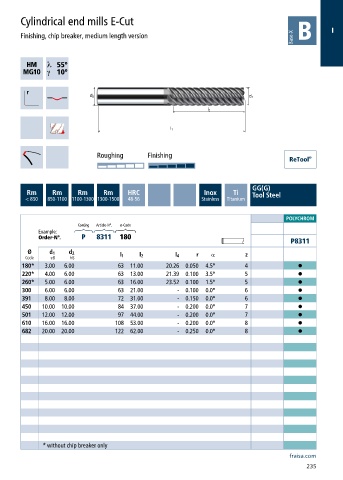

Cylindrical end mills E-Cut
I
Finishing, chip breaker, medium length version
h ƍ
a ƍ
Roughing Finishing
GG(G)
Rm Rm Rm Rm HRC Inox Ti Tool Steel
< 850 850-1100 1100-1300 1300-1500 48-56 Stainless Titanium
POLYCHROM
Coating Article-N°. ø-Code
Example:
Order-N°. P 8311 180
P8311
Ø d 1 d 2 α
Code e8 h6 l 1 l 2 l 4 r z
180* 3.00 6.00 63 11.00 20.26 0.050 4.5° 4 •
220* 4.00 6.00 63 13.00 21.39 0.100 3.5° 5 •
260* 5.00 6.00 63 16.00 23.52 0.100 1.5° 5 •
300 6.00 6.00 63 21.00 - 0.100 0.0° 6 •
391 8.00 8.00 72 31.00 - 0.150 0.0° 6 •
450 10.00 10.00 84 37.00 - 0.200 0.0° 7 •
501 12.00 12.00 97 44.00 - 0.200 0.0° 7 •
610 16.00 16.00 108 53.00 - 0.200 0.0° 8 •
682 20.00 20.00 122 62.00 - 0.250 0.0° 8 •
* without chip breaker only
