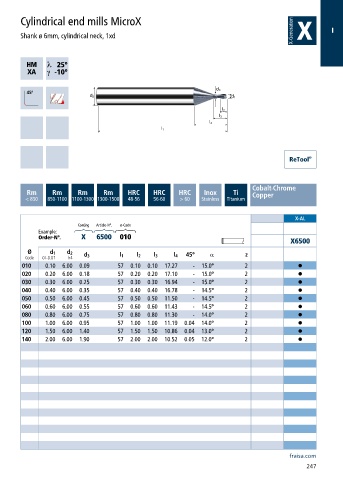

Cylindrical end mills MicroX
I
Shank ø 6mm, cylindrical neck, 1xd

h ƍ
a ƍ

Cobalt-Chrome
Rm Rm Rm Rm HRC HRC HRC Inox Ti Copper
< 850 850-1100 1100-1300 1300-1500 48-56 56-60 > 60 Stainless Titanium

X-AL
Coating Article-N°. ø-Code
Example:
Order-N°. X 6500 010
X6500
Ø d 1 d 2 α
Code 0/-0.01 h4 d 3 l 1 l 2 l 3 l 4 45° z
010 0.10 6.00 0.09 57 0.10 0.10 17.27 - 15.0° 2 •
020 0.20 6.00 0.18 57 0.20 0.20 17.10 - 15.0° 2 •
030 0.30 6.00 0.25 57 0.30 0.30 16.94 - 15.0° 2 •
040 0.40 6.00 0.35 57 0.40 0.40 16.78 - 14.5° 2 •
050 0.50 6.00 0.45 57 0.50 0.50 11.50 - 14.5° 2 •
060 0.60 6.00 0.55 57 0.60 0.60 11.43 - 14.5° 2 •
080 0.80 6.00 0.75 57 0.80 0.80 11.30 - 14.0° 2 •
100 1.00 6.00 0.95 57 1.00 1.00 11.19 0.04 14.0° 2 •
120 1.50 6.00 1.40 57 1.50 1.50 10.86 0.04 13.0° 2 •
140 2.00 6.00 1.90 57 2.00 2.00 10.52 0.05 12.0° 2 •

fraisa.com
247
