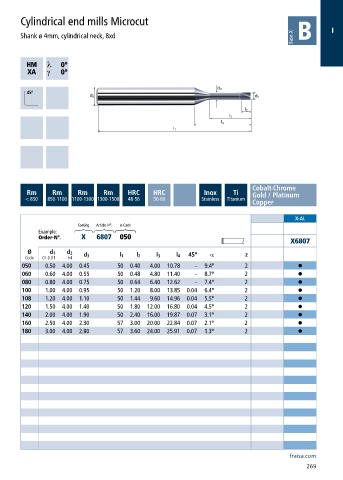

Cylindrical end mills Microcut
I
Shank ø 4mm, cylindrical neck, 8xd

h ƍ
a ƍ

Cobalt-Chrome
Rm Rm Rm Rm HRC HRC Inox Ti Gold / Platinum
< 850 850-1100 1100-1300 1300-1500 48-56 56-60 Stainless Titanium
Copper
X-AL
Coating Article-N°. ø-Code
Example:
Order-N°. X 6807 050
X6807
Ø d 1 d 2 α
Code 0/-0.01 h4 d 3 l 1 l 2 l 3 l 4 45° z
050 0.50 4.00 0.45 50 0.40 4.00 10.78 - 9.4° 2 •
060 0.60 4.00 0.55 50 0.48 4.80 11.40 - 8.7° 2 •
080 0.80 4.00 0.75 50 0.64 6.40 12.62 - 7.4° 2 •
100 1.00 4.00 0.95 50 1.20 8.00 13.85 0.04 6.4° 2 •
108 1.20 4.00 1.10 50 1.44 9.60 14.96 0.04 5.5° 2 •
120 1.50 4.00 1.40 50 1.80 12.00 16.80 0.04 4.5° 2 •
140 2.00 4.00 1.90 50 2.40 16.00 19.87 0.07 3.1° 2 •
160 2.50 4.00 2.30 57 3.00 20.00 22.84 0.07 2.1° 2 •
180 3.00 4.00 2.80 57 3.60 24.00 25.91 0.07 1.3° 2 •
