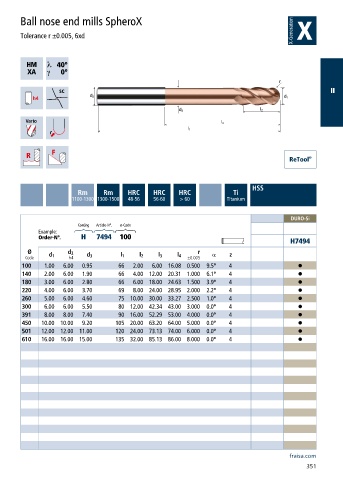

Ball nose end mills SpheroX

Tolerance r ±0.005, 6xd

h ƍ
a ƍ

II

HSS
Rm Rm HRC HRC HRC Ti
1100-1300 1300-1500 48-56 56-60 > 60 Titanium

DURO-Si
Coating Article-N°. ø-Code
Example:
Order-N°. H 7494 100
H7494
Ø d 2 r α
Code d 1 h4 d 3 l 1 l 2 l 3 l 4 ±0.005 z
100 1.00 6.00 0.95 66 2.00 6.00 16.08 0.500 9.5° 4 •
140 2.00 6.00 1.90 66 4.00 12.00 20.31 1.000 6.1° 4 •
180 3.00 6.00 2.80 66 6.00 18.00 24.63 1.500 3.9° 4 •
220 4.00 6.00 3.70 69 8.00 24.00 28.95 2.000 2.2° 4 •
260 5.00 6.00 4.60 75 10.00 30.00 33.27 2.500 1.0° 4 •
300 6.00 6.00 5.50 80 12.00 42.34 43.00 3.000 0.0° 4 •
391 8.00 8.00 7.40 90 16.00 52.29 53.00 4.000 0.0° 4 •
450 10.00 10.00 9.20 105 20.00 63.20 64.00 5.000 0.0° 4 •
501 12.00 12.00 11.00 120 24.00 73.13 74.00 6.000 0.0° 4 •
610 16.00 16.00 15.00 135 32.00 85.13 86.00 8.000 0.0° 4 •
