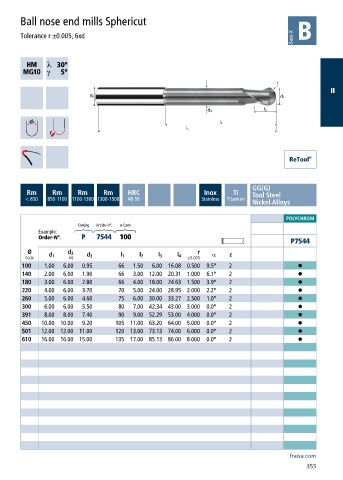

Ball nose end mills Sphericut

Tolerance r ±0.005, 6xd

h ƍ
a ƍ

II

GG(G)
Rm Rm Rm Rm HRC Inox Ti Tool Steel
< 850 850-1100 1100-1300 1300-1500 48-56 Stainless Titanium
Nickel-Alloys
POLYCHROM
Coating Article-N°. ø-Code
Example:
Order-N°. P 7544 100
P7544
Ø d 2 r α
Code d 1 h6 d 3 l 1 l 2 l 3 l 4 ±0.005 z
100 1.00 6.00 0.95 66 1.50 6.00 16.08 0.500 9.5° 2 •
140 2.00 6.00 1.90 66 3.00 12.00 20.31 1.000 6.1° 2 •
180 3.00 6.00 2.80 66 4.00 18.00 24.63 1.500 3.9° 2 •
220 4.00 6.00 3.70 70 5.00 24.00 28.95 2.000 2.2° 2 •
260 5.00 6.00 4.60 75 6.00 30.00 33.27 2.500 1.0° 2 •
300 6.00 6.00 5.50 80 7.00 42.34 43.00 3.000 0.0° 2 •
391 8.00 8.00 7.40 90 9.00 52.29 53.00 4.000 0.0° 2 •
450 10.00 10.00 9.20 105 11.00 63.20 64.00 5.000 0.0° 2 •
501 12.00 12.00 11.00 120 13.00 73.13 74.00 6.000 0.0° 2 •
610 16.00 16.00 15.00 135 17.00 85.13 86.00 8.000 0.0° 2 •
