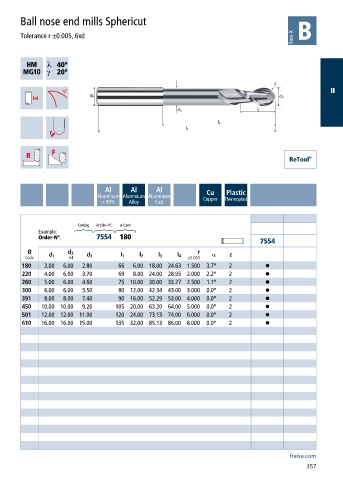

Ball nose end mills Sphericut
Tolerance r ±0.005, 6xd
h ƍ
a ƍ
II
Al Al Al
Aluminium Aluminium Aluminium Cu Plastic
> 99% Alloy Cast Copper Thermoplast
Coating Article-N°. ø-Code
Example:
Order-N°. 7554 180
7554
Ø d 2 r α
Code d 1 h4 d 3 l 1 l 2 l 3 l 4 ±0.005 z
180 3.00 6.00 2.80 66 6.00 18.00 24.63 1.500 3.7° 2 •
220 4.00 6.00 3.70 69 8.00 24.00 28.95 2.000 2.2° 2 •
260 5.00 6.00 4.60 75 10.00 30.00 33.27 2.500 1.1° 2 •
300 6.00 6.00 5.50 80 12.00 42.34 43.00 3.000 0.0° 2 •
391 8.00 8.00 7.40 90 16.00 52.29 53.00 4.000 0.0° 2 •
450 10.00 10.00 9.20 105 20.00 63.20 64.00 5.000 0.0° 2 •
501 12.00 12.00 11.00 120 24.00 73.13 74.00 6.000 0.0° 2 •
610 16.00 16.00 15.00 135 32.00 85.13 86.00 8.000 0.0° 2 •
