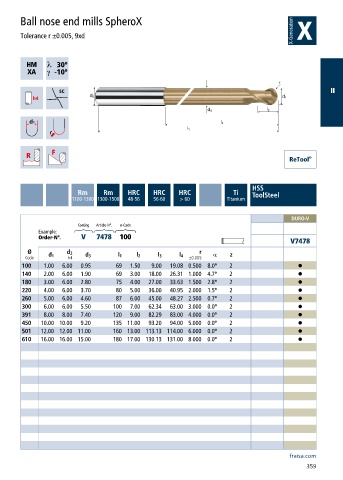

Page 361 - 21-036 APPLITEC catalogue.indb

Ball nose end mills SpheroX

Tolerance r ±0.005, 9xd

h ƍ
a ƍ

II

HSS
Rm Rm HRC HRC HRC Ti ToolSteel
1100-1300 1300-1500 48-56 56-60 > 60 Titanium

DURO-V
Coating Article-N°. ø-Code
Example:
Order-N°. V 7478 100
V7478
Ø d 2 r α
Code d 1 h4 d 3 l 1 l 2 l 3 l 4 ±0.005 z
100 1.00 6.00 0.95 69 1.50 9.00 19.08 0.500 8.0° 2 •
140 2.00 6.00 1.90 69 3.00 18.00 26.31 1.000 4.7° 2 •
180 3.00 6.00 2.80 75 4.00 27.00 33.63 1.500 2.8° 2 •
220 4.00 6.00 3.70 80 5.00 36.00 40.95 2.000 1.5° 2 •
260 5.00 6.00 4.60 87 6.00 45.00 48.27 2.500 0.7° 2 •
300 6.00 6.00 5.50 100 7.00 62.34 63.00 3.000 0.0° 2 •
391 8.00 8.00 7.40 120 9.00 82.29 83.00 4.000 0.0° 2 •
450 10.00 10.00 9.20 135 11.00 93.20 94.00 5.000 0.0° 2 •
501 12.00 12.00 11.00 160 13.00 113.13 114.00 6.000 0.0° 2 •
610 16.00 16.00 15.00 180 17.00 130.13 131.00 8.000 0.0° 2 •
