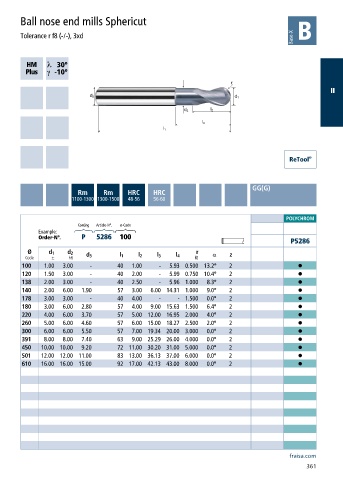

Page 363 - 21-036 APPLITEC catalogue.indb

Ball nose end mills Sphericut

Tolerance r f8 (-/-), 3xd

h ƍ
a ƍ

II

GG(G)
Rm Rm HRC HRC
1100-1300 1300-1500 48-56 56-60

POLYCHROM
Coating Article-N°. ø-Code
Example:
Order-N°. P 5286 100
P5286
Ø d 1 d 2 r α
Code ± h6 d 3 l 1 l 2 l 3 l 4 f8 z
100 1.00 3.00 - 40 1.00 - 5.93 0.500 13.2° 2 •
120 1.50 3.00 - 40 2.00 - 5.99 0.750 10.4° 2 •
138 2.00 3.00 - 40 2.50 - 5.96 1.000 8.3° 2 •
140 2.00 6.00 1.90 57 3.00 6.00 14.31 1.000 9.0° 2 •
178 3.00 3.00 - 40 4.00 - - 1.500 0.0° 2 •
180 3.00 6.00 2.80 57 4.00 9.00 15.63 1.500 6.4° 2 •
220 4.00 6.00 3.70 57 5.00 12.00 16.95 2.000 4.0° 2 •
260 5.00 6.00 4.60 57 6.00 15.00 18.27 2.500 2.0° 2 •
300 6.00 6.00 5.50 57 7.00 19.34 20.00 3.000 0.0° 2 •
391 8.00 8.00 7.40 63 9.00 25.29 26.00 4.000 0.0° 2 •
450 10.00 10.00 9.20 72 11.00 30.20 31.00 5.000 0.0° 2 •
501 12.00 12.00 11.00 83 13.00 36.13 37.00 6.000 0.0° 2 •
610 16.00 16.00 15.00 92 17.00 42.13 43.00 8.000 0.0° 2 •
