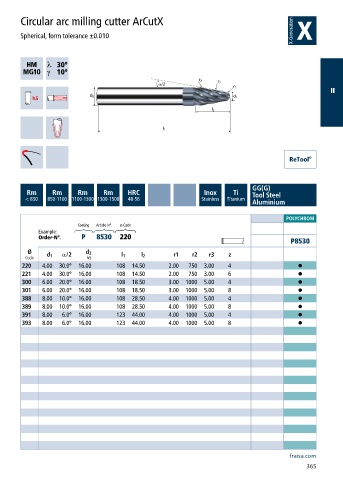

Circular arc milling cutter ArCutX
Spherical, form tolerance ±0.010
h ƍ
a ƍ
II
GG(G)
Rm Rm Rm Rm HRC Inox Ti Tool Steel
< 850 850-1100 1100-1300 1300-1500 48-56 Stainless Titanium
Aluminium
POLYCHROM
Coating Article-N°. ø-Code
Example:
Order-N°. P 8530 220
P8530
Ø d 2
Code d 1 α/2 h5 l 1 l 2 r1 r2 r3 z
220 4.00 30.0° 16.00 108 14.50 2.00 750 3.00 4 •
221 4.00 30.0° 16.00 108 14.50 2.00 750 3.00 6 •
300 6.00 20.0° 16.00 108 18.50 3.00 1000 5.00 4 •
301 6.00 20.0° 16.00 108 18.50 3.00 1000 5.00 8 •
388 8.00 10.0° 16.00 108 28.50 4.00 1000 5.00 4 •
389 8.00 10.0° 16.00 108 28.50 4.00 1000 5.00 8 •
391 8.00 6.0° 16.00 123 44.00 4.00 1000 5.00 4 •
393 8.00 6.0° 16.00 123 44.00 4.00 1000 5.00 8 •
