P. 371

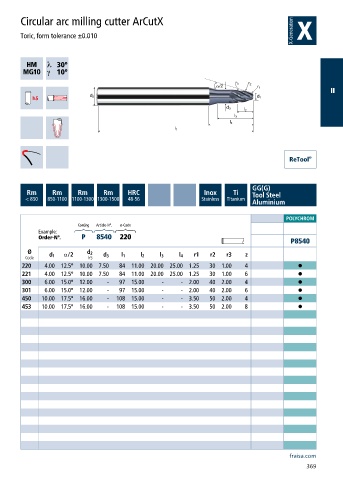

Circular arc milling cutter ArCutX
Toric, form tolerance ±0.010
h ƍ
a ƍ
II
GG(G)
Rm Rm Rm Rm HRC Inox Ti Tool Steel
< 850 850-1100 1100-1300 1300-1500 48-56 Stainless Titanium
Aluminium
POLYCHROM
Coating Article-N°. ø-Code
Example:
Order-N°. P 8540 220
P8540
Ø d 2
Code d 1 α/2 h5 d 3 l 1 l 2 l 3 l 4 r1 r2 r3 z
220 4.00 12.5° 10.00 7.50 84 11.00 20.00 25.00 1.25 30 1.00 4 •
221 4.00 12.5° 10.00 7.50 84 11.00 20.00 25.00 1.25 30 1.00 6 •
300 6.00 15.0° 12.00 - 97 15.00 - - 2.00 40 2.00 4 •
301 6.00 15.0° 12.00 - 97 15.00 - - 2.00 40 2.00 6 •
450 10.00 17.5° 16.00 - 108 15.00 - - 3.50 50 2.00 4 •
453 10.00 17.5° 16.00 - 108 15.00 - - 3.50 50 2.00 8 •
fraisa.com
369
