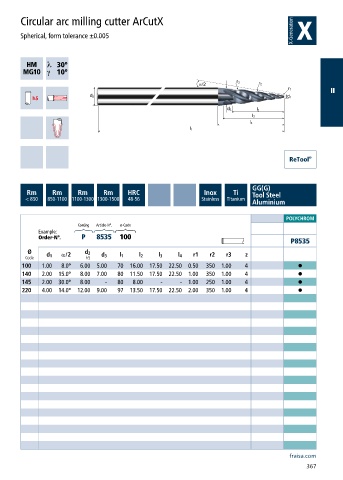

Circular arc milling cutter ArCutX
Spherical, form tolerance ±0.005
h ƍ
a ƍ
II
GG(G)
Rm Rm Rm Rm HRC Inox Ti Tool Steel
< 850 850-1100 1100-1300 1300-1500 48-56 Stainless Titanium
Aluminium
POLYCHROM
Coating Article-N°. ø-Code
Example:
Order-N°. P 8535 100
P8535
Ø d 2
Code d 1 α/2 h5 d 3 l 1 l 2 l 3 l 4 r1 r2 r3 z
100 1.00 8.0° 6.00 5.00 70 16.00 17.50 22.50 0.50 350 1.00 4 •
140 2.00 15.0° 8.00 7.00 80 11.50 17.50 22.50 1.00 350 1.00 4 •
145 2.00 30.0° 8.00 - 80 8.00 - - 1.00 250 1.00 4 •
220 4.00 14.0° 12.00 9.00 97 13.50 17.50 22.50 2.00 350 1.00 4 •
fraisa.com
367
