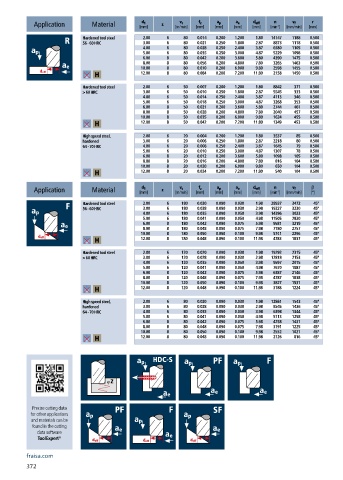

P. 374

a p
                                                                  a e
                                                                       d eff
                                        d 1
                                                   v c
                                                        f z
                                                                                  v f
                                                                             n
                                                                                        r
          Application      Material     [mm]  z   [m/min]  [mm]  [mm]  [mm]  [mm]  [min ] -1  [mm/min]  [mm]
                        Hardened tool steel    2.00  6  80  0.014  0.200  1.200  1.80  14147  1188  0.500
                        56 - 60 HRC      3.00  6    80  0.021  0.250  1.800  2.87  8873  1118  0.500
                                         4.00  6    80  0.028  0.250  2.400  3.87  6580  1105  0.500
                                         5.00  6    80  0.035  0.250  3.000  4.87  5229  1098  0.500
                                         6.00  8    80  0.042  0.200  3.600  5.80  4390  1475  0.500
                                         8.00  8    80  0.056  0.200  4.800  7.80  3265  1463  0.500
                                        10.00  8    80  0.070  0.200  6.000  9.80  2598  1455  0.500
                                        12.00  8    80  0.084  0.200  7.200  11.80  2158  1450  0.500
                        Hardened tool steel   2.00  6  50  0.007  0.200  1.200  1.80  8842  371  0.500
                        > 60 HRC         3.00  6    50  0.010  0.250  1.800  2.87  5545  333  0.500
                                         4.00  6    50  0.014  0.250  2.400  3.87  4113  346  0.500
                                         5.00  6    50  0.018  0.250  3.000  4.87  3268  353  0.500
                                         6.00  8    50  0.021  0.200  3.600  5.80  2744  461  0.500
                                         8.00  8    50  0.028  0.200  4.800  7.80  2040  457  0.500
                                        10.00  8    50  0.035  0.200  6.000  9.80  1624  455  0.500
                                        12.00  8    50  0.042  0.200  7.200  11.80  1349  453  0.500
                        High speed steel,   2.00  6  20  0.004  0.200  1.200  1.80  3537  85  0.500
                        hardened         3.00  6    20  0.006  0.250  1.800  2.87  2218  80  0.500
                        64 - 70 HRC      4.00  6    20  0.008  0.250  2.400  3.87  1645  79  0.500
                                         5.00  6    20  0.010  0.250  3.000  4.87  1307  78  0.500
                                         6.00  8    20  0.012  0.200  3.600  5.80  1098  105  0.500
                                         8.00  8    20  0.016  0.200  4.800  7.80  816  104  0.500
                                        10.00  8    20  0.020  0.200  6.000  9.80  650  104  0.500
                                        12.00  8    20  0.024  0.200  7.200  11.80  540  104  0.500
                                                             a p
                                                                       d eff
                                                                  a e
                                                   v c
                                                                                  v f
                                                                             n
                                                        f z
                                        d 1
          Application      Material     [mm]  z   [m/min]  [mm]  [mm]  [mm]  [mm]  [min ] -1  [mm/min]  [°] β
                        Hardened tool steel    2.00  6  180  0.020  0.090  0.030  1.98  28937  3472  45°
                        56 - 60 HRC      3.00  6   180  0.028  0.090  0.030  2.98  19227  3230  45°
                                         4.00  6   180  0.035  0.090  0.050  3.98  14396  3023  45°
                                         5.00  6   180  0.041  0.090  0.050  4.98  11505  2830  45°
                                         6.00  8   180  0.042  0.090  0.075  5.98  9581  3219  45°
                                         8.00  8   180  0.048  0.090  0.075  7.98  7180  2757  45°
                                        10.00  8   180  0.050  0.090  0.100  9.98  5741  2296  45°
                                        12.00  8   180  0.048  0.090  0.100  11.98  4783  1837  45°
                        Hardened tool steel   2.00  6  120  0.020  0.090  0.030  1.98  19292  2315  45°
                        > 60 HRC         3.00  6   120  0.028  0.090  0.030  2.98  12818  2153  45°
                                         4.00  6   120  0.035  0.090  0.050  3.98  9597  2015  45°
                                         5.00  6   120  0.041  0.090  0.050  4.98  7670  1887  45°
                                         6.00  8   120  0.042  0.090  0.075  5.98  6387  2146  45°
                                         8.00  8   120  0.048  0.090  0.075  7.98  4787  1838  45°
                                        10.00  8   120  0.050  0.090  0.100  9.98  3827  1531  45°
                                        12.00  8   120  0.048  0.090  0.100  11.98  3188  1224  45°
                        High speed steel,   2.00  6  80  0.020  0.090  0.030  1.98  12861  1543  45°
                        hardened         3.00  6    80  0.028  0.090  0.030  2.98  8545  1436  45°
                        64 - 70 HRC      4.00  6    80  0.035  0.090  0.050  3.98  6398  1344  45°
                                         5.00  6    80  0.041  0.090  0.050  4.98  5113  1258  45°
                                         6.00  8    80  0.042  0.090  0.075  5.98  4258  1431  45°
                                         8.00  8    80  0.048  0.090  0.075  7.98  3191  1225  45°
                                        10.00  8    80  0.050  0.090  0.100  9.98  2552  1021  45°
                                        12.00  8    80  0.048  0.090  0.100  11.98  2126  816  45°
            Precise cutting data
          for other applications
          and materials can be
          found in the cutting
           data software
           ToolExpert®

        fraisa.com
