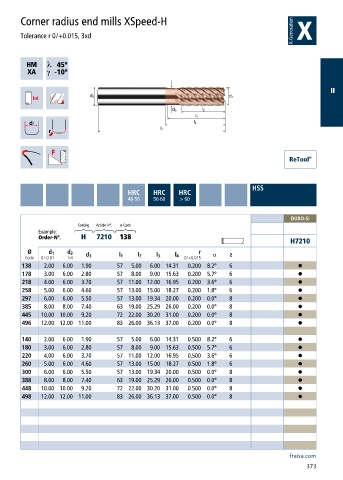

Corner radius end mills XSpeed-H

Tolerance r 0/+0.015, 3xd

h ƍ
a ƍ

II

HSS
HRC HRC HRC
48-56 56-60 > 60

DURO-Si
Coating Article-N°. ø-Code
Example:
Order-N°. H 7210 138
H7210
Ø d 1 d 2 r α
Code 0/-0.01 h4 d 3 l 1 l 2 l 3 l 4 0/+0.015 z
138 2.00 6.00 1.90 57 5.00 6.00 14.31 0.200 8.2° 6 •
178 3.00 6.00 2.80 57 8.00 9.00 15.63 0.200 5.7° 6 •
218 4.00 6.00 3.70 57 11.00 12.00 16.95 0.200 3.6° 6 •
258 5.00 6.00 4.60 57 13.00 15.00 18.27 0.200 1.8° 6 •
297 6.00 6.00 5.50 57 13.00 19.34 20.00 0.200 0.0° 8 •
385 8.00 8.00 7.40 63 19.00 25.29 26.00 0.200 0.0° 8 •
445 10.00 10.00 9.20 72 22.00 30.20 31.00 0.200 0.0° 8 •
496 12.00 12.00 11.00 83 26.00 36.13 37.00 0.200 0.0° 8 •
140 2.00 6.00 1.90 57 5.00 6.00 14.31 0.500 8.2° 6 •
180 3.00 6.00 2.80 57 8.00 9.00 15.63 0.500 5.7° 6 •
220 4.00 6.00 3.70 57 11.00 12.00 16.95 0.500 3.6° 6 •
260 5.00 6.00 4.60 57 13.00 15.00 18.27 0.500 1.8° 6 •
300 6.00 6.00 5.50 57 13.00 19.34 20.00 0.500 0.0° 8 •
388 8.00 8.00 7.40 63 19.00 25.29 26.00 0.500 0.0° 8 •
448 10.00 10.00 9.20 72 22.00 30.20 31.00 0.500 0.0° 8 •
498 12.00 12.00 11.00 83 26.00 36.13 37.00 0.500 0.0° 8 •
