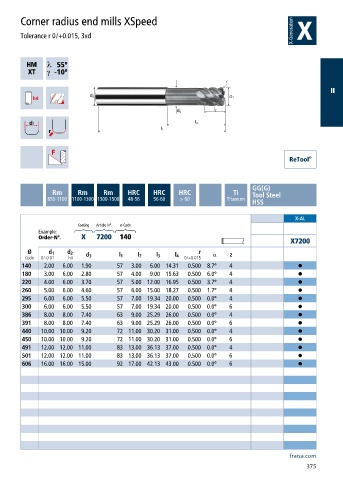

Page 377 - 21-036 APPLITEC catalogue.indb

Corner radius end mills XSpeed

Tolerance r 0/+0.015, 3xd

h ƍ
a ƍ

II

GG(G)
Rm Rm Rm HRC HRC HRC Ti Tool Steel
850-1100 1100-1300 1300-1500 48-56 56-60 > 60 Titanium
HSS
X-AL
Coating Article-N°. ø-Code
Example:
Order-N°. X 7200 140
X7200
Ø d 1 d 2 r α
Code 0/-0.01 h4 d 3 l 1 l 2 l 3 l 4 0/+0.015 z
140 2.00 6.00 1.90 57 3.00 6.00 14.31 0.500 8.7° 4 •
180 3.00 6.00 2.80 57 4.00 9.00 15.63 0.500 6.0° 4 •
220 4.00 6.00 3.70 57 5.00 12.00 16.95 0.500 3.7° 4 •
260 5.00 6.00 4.60 57 6.00 15.00 18.27 0.500 1.7° 4 •
295 6.00 6.00 5.50 57 7.00 19.34 20.00 0.500 0.0° 4 •
300 6.00 6.00 5.50 57 7.00 19.34 20.00 0.500 0.0° 6 •
386 8.00 8.00 7.40 63 9.00 25.29 26.00 0.500 0.0° 4 •
391 8.00 8.00 7.40 63 9.00 25.29 26.00 0.500 0.0° 6 •
440 10.00 10.00 9.20 72 11.00 30.20 31.00 0.500 0.0° 4 •
450 10.00 10.00 9.20 72 11.00 30.20 31.00 0.500 0.0° 6 •
491 12.00 12.00 11.00 83 13.00 36.13 37.00 0.500 0.0° 4 •
501 12.00 12.00 11.00 83 13.00 36.13 37.00 0.500 0.0° 6 •
606 16.00 16.00 15.00 92 17.00 42.13 43.00 0.500 0.0° 6 •
