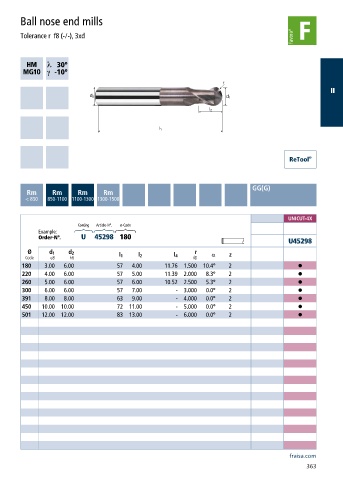

P. 365
Ball nose end mills
Tolerance r f8 (-/-), 3xd
h ƍ
a ƍ
II
GG(G)
Rm Rm Rm Rm
< 850 850-1100 1100-1300 1300-1500
UNICUT-4X
Coating Article-N°. ø-Code
Example:
Order-N°. U 45298 180
U45298
Ø d 1 d 2 r α
Code e8 h6 l 1 l 2 l 4 f8 z
180 3.00 6.00 57 4.00 11.76 1.500 10.4° 2 •
220 4.00 6.00 57 5.00 11.39 2.000 8.3° 2 •
260 5.00 6.00 57 6.00 10.52 2.500 5.3° 2 •
300 6.00 6.00 57 7.00 - 3.000 0.0° 2 •
391 8.00 8.00 63 9.00 - 4.000 0.0° 2 •
450 10.00 10.00 72 11.00 - 5.000 0.0° 2 •
501 12.00 12.00 83 13.00 - 6.000 0.0° 2 •
fraisa.com
363
