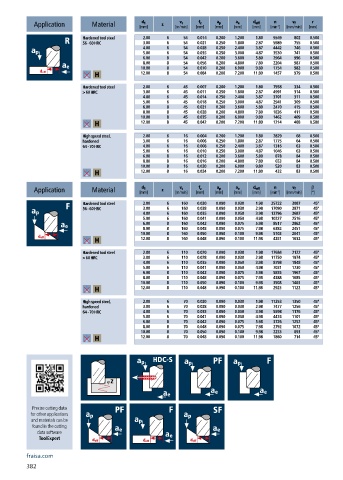

P. 384
a p
a e
d eff
d 1
v c
f z
v f
n
r
Application Material [mm] z [m/min] [mm] [mm] [mm] [mm] [min ] -1 [mm/min] [mm]
Hardened tool steel 2.00 6 54 0.014 0.200 1.200 1.80 9549 802 0.500
56 - 60 HRC 3.00 6 54 0.021 0.250 1.800 2.87 5989 755 0.500
4.00 6 54 0.028 0.250 2.400 3.87 4442 746 0.500
5.00 6 54 0.035 0.250 3.000 4.87 3530 741 0.500
6.00 8 54 0.042 0.200 3.600 5.80 2964 996 0.500
8.00 8 54 0.056 0.200 4.800 7.80 2204 987 0.500
10.00 8 54 0.070 0.200 6.000 9.80 1754 982 0.500
12.00 8 54 0.084 0.200 7.200 11.80 1457 979 0.500
Hardened tool steel 2.00 6 45 0.007 0.200 1.200 1.80 7958 334 0.500
> 60 HRC 3.00 6 45 0.011 0.250 1.800 2.87 4991 314 0.500
4.00 6 45 0.014 0.250 2.400 3.87 3701 311 0.500
5.00 6 45 0.018 0.250 3.000 4.87 2941 309 0.500
6.00 8 45 0.021 0.200 3.600 5.80 2470 415 0.500
8.00 8 45 0.028 0.200 4.800 7.80 1836 411 0.500
10.00 8 45 0.035 0.200 6.000 9.80 1462 409 0.500
12.00 8 45 0.042 0.200 7.200 11.80 1214 408 0.500
High speed steel, 2.00 6 16 0.004 0.200 1.200 1.80 2829 68 0.500
hardened 3.00 6 16 0.006 0.250 1.800 2.87 1775 64 0.500
64 - 70 HRC 4.00 6 16 0.008 0.250 2.400 3.87 1316 63 0.500
5.00 6 16 0.010 0.250 3.000 4.87 1046 63 0.500
6.00 8 16 0.012 0.200 3.600 5.80 878 84 0.500
8.00 8 16 0.016 0.200 4.800 7.80 653 84 0.500
10.00 8 16 0.020 0.200 6.000 9.80 520 83 0.500
12.00 8 16 0.024 0.200 7.200 11.80 432 83 0.500
a p
a e
d eff
n
v f
v c
f z
d 1
Application Material [mm] z [m/min] [mm] [mm] [mm] [mm] [min ] -1 [mm/min] [°] β
Hardened tool steel 2.00 6 160 0.020 0.090 0.030 1.98 25722 3087 45°
56 - 60 HRC 3.00 6 160 0.028 0.090 0.030 2.98 17090 2871 45°
4.00 6 160 0.035 0.090 0.050 3.98 12796 2687 45°
5.00 6 160 0.041 0.090 0.050 4.98 10227 2516 45°
6.00 8 160 0.042 0.090 0.075 5.98 8517 2862 45°
8.00 8 160 0.048 0.090 0.075 7.98 6382 2451 45°
10.00 8 160 0.050 0.090 0.100 9.98 5103 2041 45°
12.00 8 160 0.048 0.090 0.100 11.98 4251 1632 45°
Hardened tool steel 2.00 6 110 0.020 0.090 0.030 1.98 17684 2122 45°
> 60 HRC 3.00 6 110 0.028 0.090 0.030 2.98 11750 1974 45°
4.00 6 110 0.035 0.090 0.050 3.98 8798 1848 45°
5.00 6 110 0.041 0.090 0.050 4.98 7031 1730 45°
6.00 8 110 0.042 0.090 0.075 5.98 5855 1967 45°
8.00 8 110 0.048 0.090 0.075 7.98 4388 1685 45°
10.00 8 110 0.050 0.090 0.100 9.98 3508 1403 45°
12.00 8 110 0.048 0.090 0.100 11.98 2923 1122 45°
High speed steel, 2.00 6 70 0.020 0.090 0.030 1.98 11253 1350 45°
hardened 3.00 6 70 0.028 0.090 0.030 2.98 7477 1256 45°
64 - 70 HRC 4.00 6 70 0.035 0.090 0.050 3.98 5598 1176 45°
5.00 6 70 0.041 0.090 0.050 4.98 4474 1101 45°
6.00 8 70 0.042 0.090 0.075 5.98 3726 1252 45°
8.00 8 70 0.048 0.090 0.075 7.98 2792 1072 45°
10.00 8 70 0.050 0.090 0.100 9.98 2233 893 45°
12.00 8 70 0.048 0.090 0.100 11.98 1860 714 45°
Precise cutting data
for other applications
and materials can be
found in the cutting
data software
ToolExpert
fraisa.com
382
