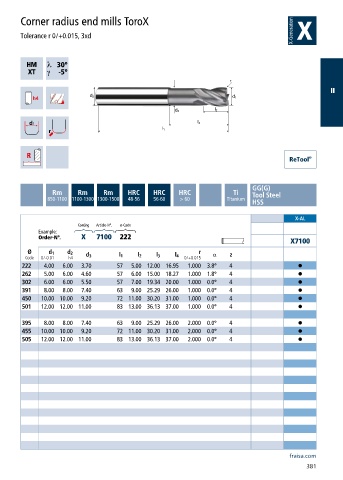

Corner radius end mills ToroX

Tolerance r 0/+0.015, 3xd

h ƍ
a ƍ

II

GG(G)
Rm Rm Rm HRC HRC HRC Ti Tool Steel
850-1100 1100-1300 1300-1500 48-56 56-60 > 60 Titanium
HSS
X-AL
Coating Article-N°. ø-Code
Example:
Order-N°. X 7100 222
X7100
Ø d 1 d 2 r α
Code 0/-0.01 h4 d 3 l 1 l 2 l 3 l 4 0/+0.015 z
222 4.00 6.00 3.70 57 5.00 12.00 16.95 1.000 3.8° 4 •
262 5.00 6.00 4.60 57 6.00 15.00 18.27 1.000 1.8° 4 •
302 6.00 6.00 5.50 57 7.00 19.34 20.00 1.000 0.0° 4 •
391 8.00 8.00 7.40 63 9.00 25.29 26.00 1.000 0.0° 4 •
450 10.00 10.00 9.20 72 11.00 30.20 31.00 1.000 0.0° 4 •
501 12.00 12.00 11.00 83 13.00 36.13 37.00 1.000 0.0° 4 •

395 8.00 8.00 7.40 63 9.00 25.29 26.00 2.000 0.0° 4 •
455 10.00 10.00 9.20 72 11.00 30.20 31.00 2.000 0.0° 4 •
505 12.00 12.00 11.00 83 13.00 36.13 37.00 2.000 0.0° 4 •
