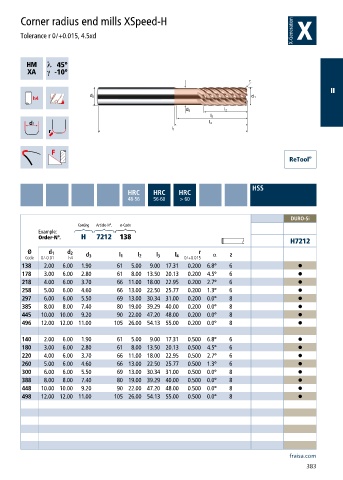

Corner radius end mills XSpeed-H

Tolerance r 0/+0.015, 4.5xd

h ƍ
a ƍ

II

HSS
HRC HRC HRC
48-56 56-60 > 60

DURO-Si
Coating Article-N°. ø-Code
Example:
Order-N°. H 7212 138
H7212
Ø d 1 d 2 r α
Code 0/-0.01 h4 d 3 l 1 l 2 l 3 l 4 0/+0.015 z
138 2.00 6.00 1.90 61 5.00 9.00 17.31 0.200 6.8° 6 •
178 3.00 6.00 2.80 61 8.00 13.50 20.13 0.200 4.5° 6 •
218 4.00 6.00 3.70 66 11.00 18.00 22.95 0.200 2.7° 6 •
258 5.00 6.00 4.60 66 13.00 22.50 25.77 0.200 1.3° 6 •
297 6.00 6.00 5.50 69 13.00 30.34 31.00 0.200 0.0° 8 •
385 8.00 8.00 7.40 80 19.00 39.29 40.00 0.200 0.0° 8 •
445 10.00 10.00 9.20 90 22.00 47.20 48.00 0.200 0.0° 8 •
496 12.00 12.00 11.00 105 26.00 54.13 55.00 0.200 0.0° 8 •
140 2.00 6.00 1.90 61 5.00 9.00 17.31 0.500 6.8° 6 •
180 3.00 6.00 2.80 61 8.00 13.50 20.13 0.500 4.5° 6 •
220 4.00 6.00 3.70 66 11.00 18.00 22.95 0.500 2.7° 6 •
260 5.00 6.00 4.60 66 13.00 22.50 25.77 0.500 1.3° 6 •
300 6.00 6.00 5.50 69 13.00 30.34 31.00 0.500 0.0° 8 •
388 8.00 8.00 7.40 80 19.00 39.29 40.00 0.500 0.0° 8 •
448 10.00 10.00 9.20 90 22.00 47.20 48.00 0.500 0.0° 8 •
498 12.00 12.00 11.00 105 26.00 54.13 55.00 0.500 0.0° 8 •
