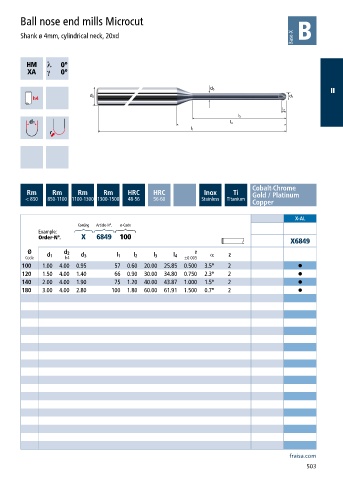

Ball nose end mills Microcut
Shank ø 4mm, cylindrical neck, 20xd
h ƍ
a ƍ
II
Cobalt-Chrome
Rm Rm Rm Rm HRC HRC Inox Ti Gold / Platinum
< 850 850-1100 1100-1300 1300-1500 48-56 56-60 Stainless Titanium
Copper
X-AL
Coating Article-N°. ø-Code
Example:
Order-N°. X 6849 100
X6849
Ø d 2 r α
Code d 1 h4 d 3 l 1 l 2 l 3 l 4 ±0.005 z
100 1.00 4.00 0.95 57 0.60 20.00 25.85 0.500 3.5° 2 •
120 1.50 4.00 1.40 66 0.90 30.00 34.80 0.750 2.3° 2 •
140 2.00 4.00 1.90 75 1.20 40.00 43.87 1.000 1.5° 2 •
180 3.00 4.00 2.80 100 1.80 60.00 61.91 1.500 0.7° 2 •
