P. 503

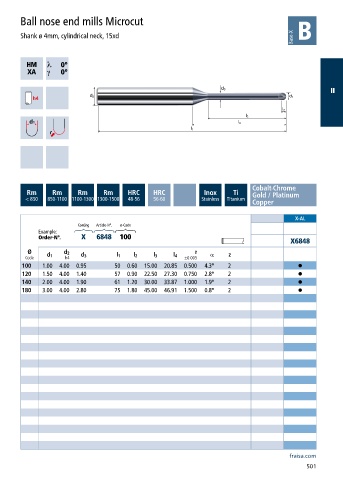

Ball nose end mills Microcut
Shank ø 4mm, cylindrical neck, 15xd
h ƍ
a ƍ
II
Cobalt-Chrome
Rm Rm Rm Rm HRC HRC Inox Ti Gold / Platinum
< 850 850-1100 1100-1300 1300-1500 48-56 56-60 Stainless Titanium
Copper
X-AL
Coating Article-N°. ø-Code
Example:
Order-N°. X 6848 100
X6848
Ø d 2 r α
Code d 1 h4 d 3 l 1 l 2 l 3 l 4 ±0.005 z
100 1.00 4.00 0.95 50 0.60 15.00 20.85 0.500 4.3° 2 •
120 1.50 4.00 1.40 57 0.90 22.50 27.30 0.750 2.8° 2 •
140 2.00 4.00 1.90 61 1.20 30.00 33.87 1.000 1.9° 2 •
180 3.00 4.00 2.80 75 1.80 45.00 46.91 1.500 0.8° 2 •
fraisa.com
501
