P. 501

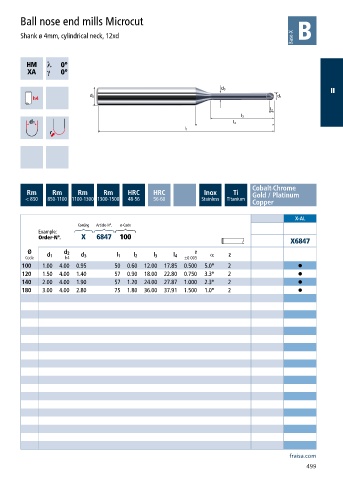

Ball nose end mills Microcut
Shank ø 4mm, cylindrical neck, 12xd
h ƍ
a ƍ
II
Cobalt-Chrome
Rm Rm Rm Rm HRC HRC Inox Ti Gold / Platinum
< 850 850-1100 1100-1300 1300-1500 48-56 56-60 Stainless Titanium
Copper
X-AL
Coating Article-N°. ø-Code
Example:
Order-N°. X 6847 100
X6847
Ø d 2 r α
Code d 1 h4 d 3 l 1 l 2 l 3 l 4 ±0.005 z
100 1.00 4.00 0.95 50 0.60 12.00 17.85 0.500 5.0° 2 •
120 1.50 4.00 1.40 57 0.90 18.00 22.80 0.750 3.3° 2 •
140 2.00 4.00 1.90 57 1.20 24.00 27.87 1.000 2.3° 2 •
180 3.00 4.00 2.80 75 1.80 36.00 37.91 1.500 1.0° 2 •
fraisa.com
499
